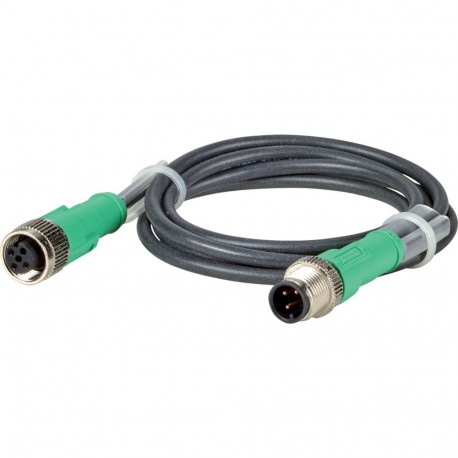

RA-XM12-1M 272057 Y7-272057 EATON ELECTRIC Extension cable, 1m, M12, socket/plug
RA-XM12-1M
272057
Y7-272057
EATON - MOELLER
1 Pcs.
Extension cable, 1m, M12, socket/plug
RA-XM12-1M
Extension cable with M12 socket and plug for extension of the AS-Interface M12-cable, pin 1,3,4 are assigned
Automation > Sensor-actuator patch cord
Rapid Link Starters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Extension cable, 1m, M12, socket/plug
Extension cable with M12 socket and plug for extension of the AS-Interface M12-cable, pin 1,3,4 are assigned
General specifications
Product name
Eaton Moeller® series Rapid Link Accessory Extension circuit
Part no.
RA-XM12-1M
EAN
4015082720575
Product Length/Depth
1000 millimetre
Product height
15 millimetre
Product width
15 millimetre
Product weight
0.05 kilogram
Compliances
CE
Product Tradename
Rapid Link
Product Type
Accessory
Product Sub Type
Extension circuit
Catalog Notes
Pins 1, 3, 4 are assigned
Features & Functions
Features
Halogen free
Fitted with:
M12 socket and M12 plug, 3-pole
Functions
For connecting the device with AS-Interface junction
General information
Degree of protection
IP65
Nominal current
1 A
Product category
AS-Interface connection and sensors
Climatic environmental conditions
Ambient operating temperature - min
0 °C
Main circuit
Rated operational voltage (Ue) - max
24 V
Cable
Cable length
1 m
Cable sheath material
Other
Cable type
Multi-core
Technical data ETIM 9.0
Sensors (EG000026) / Sensor-actuator patch cord (EC001855)
Electric engineering, automation, process control engineering / Cable, wire / Ready-made data cable / Assembled sensor/actuator adapter, with cable (ecl@ss13-27-06-03-13 [AFR625008])
Number of poles
3
Type of electrical connection, field-sided
M12
Type of plug-in contact, field sided
Female (bus)
Positioning cable feed, field-sided
Straight
Type of electrical connection, box-sided
M12
Type of plug-in contact, box-sided
Male (plug)
Positioning cable feed, box-sided
Straight
Cable length
1 m
Material of cable sheath
Other
Halogen free
Yes
Colour cable sheath
Green
With LED indication
No
Screened
No
Cable type
Multi-core
Vulcanize
No
Material contact body
Other
Material of contact surface
Other
Permitted cable outer temperature after assembling without vibration
0 - 50 °C
Permitted cable outer temperature during assembling/handling
0 - 55 °C
Rated current In
1 A
Rated voltage
24 V
Continuity resistance
0 mOhm
Degree of protection (IP)
IP65
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 3 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Female (bus) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 1 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Green |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | 0 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | 0 °C |
| Rated current In (EF008250) | 1 A |
| Rated voltage (EF000228) | 24 V |
| Continuity resistance (EF003992) | 0 mOhm |
| Degree of protection (IP) (EF005474) | IP65 |
