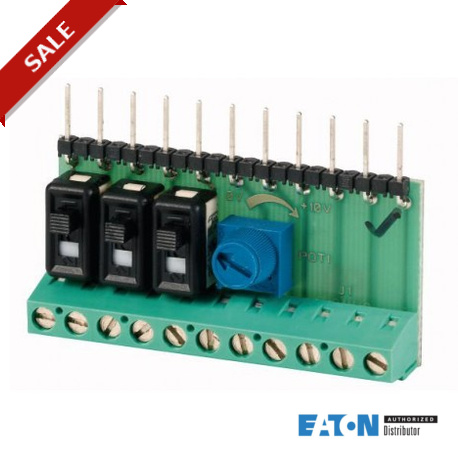

DXC-EXT-LOCSIM 169034 EATON ELECTRIC Expansion for DC1 variable frequency drives (Local Sim)
DXC-EXT-LOCSIM
169034
EATON - MOELLER
1 Pcs.
Expansion for DC1 variable frequency drives (Local Sim)
Control signal terminal simulator, Subrange: Control signal terminal simulator, Basic function: Commissioning and testing simulator, Description: 3 digital inputs (+24 V), 1 relay output (max. 30 V DC), 3 microswitches, 1 reference value potentiometer (0 - +10 V / = 0 - fmax), For connecting to the control signal terminals on the DC1, For use with: DC1
Automation > Accessories/spare parts for frequency controller
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Delivery programme
Part group reference (e.g. DIL) | DC1 | ||
Subrange | Control signal terminal simulator | ||
Basic function | Commissioning and testing simulator | ||
Description | 3 digital inputs (+24 V) 1 relay output (max. 30 V DC) 3 microswitches 1 reference value potentiometer (0 - +10 V / = 0 - fmax) For connecting to the control signal terminals on the DC1 | ||
For use with | DC1 |
Design verification as per IEC/EN 61439(Show features)(Hide features)
Technical data for design verification | |||
Operating ambient temperature min. | °C | -10 | |
Operating ambient temperature max. | °C | 50 | |
IEC/EN 61439 design verification | |||
10.2 Strength of materials and parts | |||
10.2.2 Corrosion resistance | Meets the product standard's requirements. | ||
10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. | ||
10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. | ||
10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects | Meets the product standard's requirements. | ||
10.2.4 Resistance to ultra-violet (UV) radiation | Meets the product standard's requirements. | ||
10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.2.7 Inscriptions | Meets the product standard's requirements. | ||
10.3 Degree of protection of ASSEMBLIES | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.4 Clearances and creepage distances | Meets the product standard's requirements. | ||
10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. | ||
10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. | ||
10.8 Connections for external conductors | Is the panel builder's responsibility. | ||
10.9 Insulation properties | |||
10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. | ||
10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. | ||
10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. | ||
10.10 Temperature rise | The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices. | ||
10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. | ||
10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. | ||
10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
Technical data ETIM 6.0(Show features)(Hide features)
| Low-voltage industrial components (EG000017) / Accessories for frequency controller (EC002025) | |||
| Electric engineering, automation, process control engineering / Electrical drive / Electrical drive (accessories) / Frequency controller (accessories) ([email protected] [ACN127008]) | |||
Type of accessory | - | ||
Approvals
| Product Standards | UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking | ||
| UL File No. | E172143 | ||
| UL Category Control No. | NMMS, NMMS7 | ||
| CSA File No. | UL report applies to both US and Canada | ||
| North America Certification | UL listed, certified by UL for use in Canada | ||
| Specially designed for North America | No | ||
| Suitable for | Branch circuits | ||
| Degree of Protection | IEC: IP00 |
| Feature Name | Feature Value |
|---|---|
| Accessory (EF013236) | No |
| Spare part (EF013237) | No |
