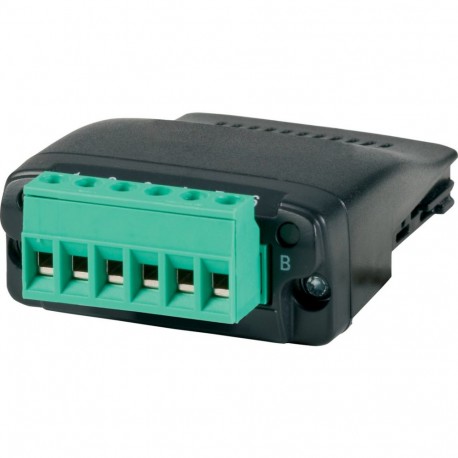

DXA-EXT-ENCOD 169035 Y7-169035 EATON ELECTRIC Expansion for DA1 variable frequency drives (Local IN)
DXA-EXT-ENCOD
169035
Y7-169035
EATON - MOELLER
1 Pcs.
Expansion for DA1 variable frequency drives (Local IN)
DXA-EXT-ENCOD
Encoder module, Subrange: Encoder module, Description: 2-channel, max. 500 kHz, 5 V TTL, A & B, /A & /B, 5 V DC, max. 200 mA, 24 V HTL, A & B, /A & /B, 24 V DC, external power supply required, max. 30 V DC, For use with: DA1, Connection technique: Plug-in module with plug-in terminal block, 5 pole
Automation > Accessories/spare parts for frequency controller
Power XL Frequency Converters
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton DA1 Accessory Encoder module
Catalog Number
169035
Model Code
DXA-EXT-ENCOD
EAN
4015081655281
Product Length/Depth
38 mm
Product Height
170 mm
Product Width
120 mm
Product Weight
0.03 kg
Certifications
IEC/EN61800-5
Certified by UL for use in Canada
UL File No.: E172143
UL 508C
UL report applies to both US and Canada
UL
CE
CSA-C22.2 No. 14
IEC/EN61800-3
UL Category Control No.: NMMS, NMMS7
Certified by UL for use in Canada
UL File No.: E172143
UL 508C
UL report applies to both US and Canada
UL
CE
CSA-C22.2 No. 14
IEC/EN61800-3
UL Category Control No.: NMMS, NMMS7
General
Accessory/spare part type
Extension module
Degree of protection
IP00
Number of channels
2
Product Category
Accessories
Suitable for
Branch circuits, (UL/CSA)
Climatic environmental conditions
Ambient operating temperature - min
-10 °C
Ambient operating temperature - max
50 °C
Design verification
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Extension module |
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
