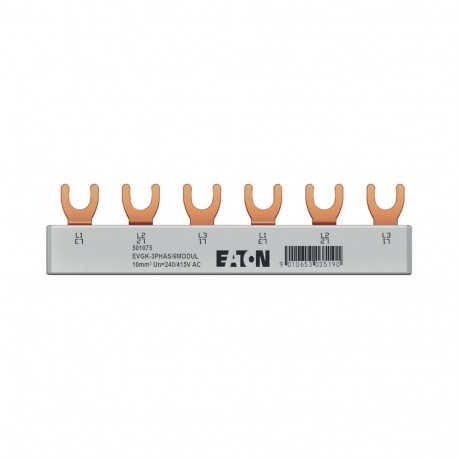

EATON - MOELLER EVGK-3PHAS/6MODUL EVGK-3PHAS/6MODUL EP-501075 Y7-501075 EATON ELECTRIC EVGK-3PHAS/6MODUL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EVGK-3PHAS/6MODUL EP-501075 Y7-501075 EATON ELECTRIC EVGK-3PHAS/6MODUL

EVGK-3PHAS/6MODUL

EP-501075

Y7-501075

EATON - MOELLER

20 Pcs.

EVGK-3PHAS/6MODUL EVGK-3PHAS/6MODUL, EVGK busbar fork, 3-phase, L1 - L2 - L3, shortenable version with end caps included, 6 module units, 10 mm² Busbar for miniature circuit-breaker, residual-current circuit-breakers, combined residual-current/power circuit-breaker, preinstalled end caps (can also be ordered separately), can be cut to length, RAL 7035 color, halogen free (DIN EN 60754-1), fire class according to V2, testing by VDE (DIN EN 61439-1:2021-10 DIN EN 61439-6:2013-06), PC-ABS isolation material and PP touch protection material, disruptive strength of 36 kV/mm and overvoltage category III

Automation > Phase busbar
Modular Switchgear – Others and Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The EVGK-3PHAS/6MODUL EP-501075 Y7-501075 EATON ELECTRIC EVGK-3PHAS/6MODUL from Eaton Moeller is a multi-phase distribution busbar designed to link modular protective devices in electrical switchgear configurations. By standardizing the connection path across multiple devices, these busbars enhance safety and installation neatness.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of phases (EF000351): 3
  • Number of poles (EF001391): 3
  • Suitable for number of devices (EF007241): 2
  • Module width (EF007504): 17.8 mm
  • Cross section (EF000649): 10 mm²
  • Length (EF001438): 106 mm
  • Can be cut to size (EF015250): Yes
  • Width in number of modular spacings (EF002950): 6
  • Rated permanent current Iu (EF001389): 63 A
  • Type of electric connection (EF003961): Fork
  • Insulated (EF000019): Yes
  • Rated surge voltage (EF002993): 4 kV
  • Conditioned rated short-circuit current Iq (EF001444): 25 kA
  • Max. rated operation voltage Ue (EF007357): 415 V
  • Rated short-time withstand current lcw (EF007050): 0 kA
  • Suitable for devices with N-conductor (EF007218): No

More info

▲

General specifications

Product Name
Eaton Moeller series busbar
Catalog Number
EP-501075
Model Code
EVGK-3PHAS/6MODUL
EAN
9010653035190
Product Length/Depth
106 mm
Product Height
28.5 mm
Product Width
15 mm
Product Weight
0.036 kg
Certifications
CE

Product specifications

Features
Insulated
Can be cut to size
Electric connection type
Fork
Cross section
10 mm²
Number of modular spacings
6
Number of phases
3
Pitch dimensions
17.8 mm
Rated operating voltage (Ue) - max
415 V
Rated surge voltage
4 KV
Rated uninterrupted current (Iu)
63 A
Rated short-time withstand current (Icw)
0 kA
Number of poles
Three-pole
Color
Grey
Rated conditional short-circuit current (Iq)
25 kA
Suitable for
2 devices
