EVGK-3PHAS/12MODUL EP-501069 Y7-501069 EATON ELECTRIC EVGK-3PHAS/12MODUL
EVGK-3PHAS/12MODUL
EP-501069
Y7-501069
EATON - MOELLER
20 Pcs.
Automation > Phase busbar
Modular Switchgear – Others and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

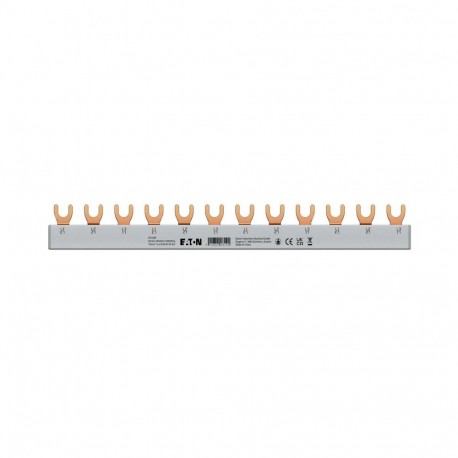

An Eaton Moeller EVGK-3PHAS/12MODUL is a multi-phase comb busbar typically applied in electrical distribution boards to connect multiple modular DIN-rail devices efficiently and securely. Multi-phase busbars simplify wiring architecture and reduce potential points of failure in high-density panel builds.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of phases (EF000351): 3
- Number of poles (EF001391): 3
- Suitable for number of devices (EF007241): 4
- Module width (EF007504): 17.8 mm
- Cross section (EF000649): 10 mm²
- Length (EF001438): 213 mm
- Can be cut to size (EF015250): Yes
- Width in number of modular spacings (EF002950): 12
- Rated permanent current Iu (EF001389): 63 A
- Type of electric connection (EF003961): Fork
- Insulated (EF000019): Yes
- Rated surge voltage (EF002993): 4 kV
- Conditioned rated short-circuit current Iq (EF001444): 25 kA
- Max. rated operation voltage Ue (EF007357): 415 V
- Rated short-time withstand current lcw (EF007050): 0 kA
- Suitable for devices with N-conductor (EF007218): No
More info
▲General specifications
Product specifications
Can be cut to size
