BUSBAR EVG-2PHAS 4AFDD

193378

Y7-193378

EATON - MOELLER

10 Pcs.

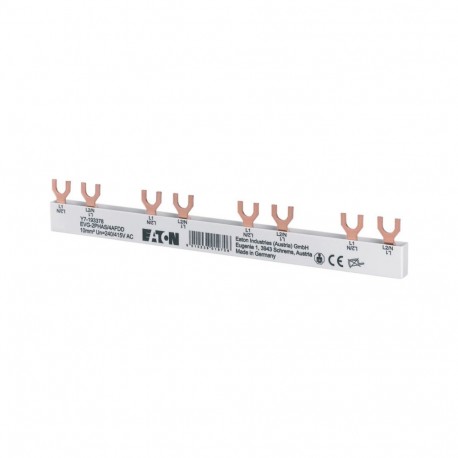

EVG-2PHAS/4AFDD Eaton Moeller series busbar, BUSBAR EVG-2PHAS 4AFDD. Single-phase rail for 4 AFDD, 10mm² EV busbars 2Ph., AFDD

Automation > Phase busbar
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A BUSBAR EVG-2PHAS 4AFDD Eaton Moeller EVG-2PHAS/4AFDD serves as a multi-phase distribution link for connecting modular electrical protective devices in modern facility distribution boards. This hardware guarantees clean parallel connections and lowers the risk of loose terminal connections. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of phases (EF000351): 4
  • Number of poles (EF001391): 3
  • Suitable for number of devices (EF007241): 0
  • Module width (EF007504): 17.8 mm
  • Cross section (EF000649): 10 mm²
  • Length (EF001438): 192 mm
  • Can be cut to size (EF015250): No
  • Width in number of modular spacings (EF002950): 28
  • Rated permanent current Iu (EF001389): 50 A
  • Type of electric connection (EF003961): Fork
  • Insulated (EF000019): Yes
  • Rated surge voltage (EF002993): 0 kV
  • Conditioned rated short-circuit current Iq (EF001444): 25 kA
  • Max. rated operation voltage Ue (EF007357): 690 V
  • Rated short-time withstand current lcw (EF007050): 0 kA
  • Suitable for devices with N-conductor (EF007218): Yes

More info

▲

General specifications

Product Name
Eaton Moeller series busbar
Catalog Number
193378
Model Code
BUSBAR EVG-2PHAS 4AFDD
EAN
9010238019706
Product Length/Depth
192 mm
Product Height
27.1 mm
Product Width
9.5 mm
Product Weight
0.06 kg
Compliances
RoHS conform

Product specifications

Features
Insulated
Electric connection type
Fork
Rated surge voltage
0 KV
Rated uninterrupted current (Iu)
50 A
Suitable for number of devices
0
Number of poles
Three-pole
Color
Other
Rated short-time withstand current (Icw)
12.5 kA
0 kA
Cross section
10 mm²
Number of modular spacings
28
Number of phases
4
Pitch dimensions
17.8 mm
Rated operational voltage (Ue) - max
690 V
Rated conditional short-circuit current (Iq)
25 kA
0 kA
Suitable for
4 devices
Devices with N-busbar

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
