View larger
Images are for illustrative purposes only. Please refer to data sheet for details

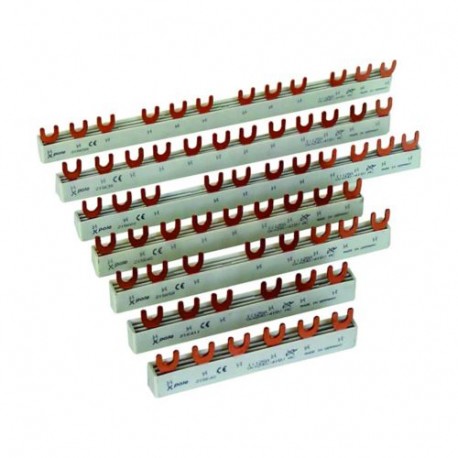

EVG-2PHAS/20MODUL 132659 Y7-132659 EATON ELECTRIC EV busbars 2Ph., 20HP
EVG-2PHAS/20MODUL
132659
Y7-132659
EATON - MOELLER
1 Pcs.
EV busbars 2Ph., 20HP
EVG-2PHAS/20MODUL
Eaton Moeller series xPole - Busbar. EV busbars 2Ph., 20HP
Busbars: flashovers are minimized Use of end caps not required Saves 30% of the assembly time
Automation > Phase busbar
Modular Switchgear – Others and Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller series busbar
Catalog Number
132659
Model Code
EVG-2PHAS/20MODUL
EAN
4015081296231
Product Length/Depth
357 mm
Product Height
26.7 mm
Product Width
8.6 mm
Product Weight
0.146 kg
Compliances
RoHS conform
Product specifications
Features
Insulated
Electric connection type
Fork
Rated surge voltage
4 KV
Rated uninterrupted current (Iu)
63 A
Suitable for number of devices
0
Number of poles
Two-pole
Color
Other
Rated short-time withstand current (Icw)
0 kA
Cross section
10 mm²
Number of modular spacings
20
Number of phases
2
Pitch dimensions
0 mm
Rated operational voltage (Ue) - max
500 V
Rated conditional short-circuit current (Iq)
25 kA
| Feature Name | Feature Value |
|---|---|
| Number of phases (EF000351) | 2 |
| Number of poles (EF001391) | 2 |
| Suitable for number of devices (EF007241) | 0 |
| Module width (EF007504) | 0 mm |
| Cross section (EF000649) | 10 mm² |
| Length (EF001438) | 357 mm |
| Can be cut to size (EF015250) | No |
| Width in number of modular spacings (EF002950) | 20 |
| Rated permanent current Iu (EF001389) | 63 A |
| Type of electric connection (EF003961) | Fork |
| Insulated (EF000019) | Yes |
| Rated surge voltage (EF002993) | 4 kV |
| Conditioned rated short-circuit current Iq (EF001444) | 25 kA |
| Max. rated operation voltage Ue (EF007357) | 500 V |
| Rated short-time withstand current lcw (EF007050) | 0 kA |
| Suitable for devices with N-conductor (EF007218) | No |
| Suitable for devices with auxiliary switch (EF007217) | No |
| Colour (EF000007) | Other |
