EU8E-SWD-16DD 174750 Y7-174750 EATON ELECTRIC SWD Block module I/O module IP69K, 24 V DC, 16 parameterizable..
EU8E-SWD-16DD
174750
Y7-174750
EATON - MOELLER
1 Pcs.
Automation > Fieldbus, decentr. periphery - digital I/O module
Smartwire Darwin
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

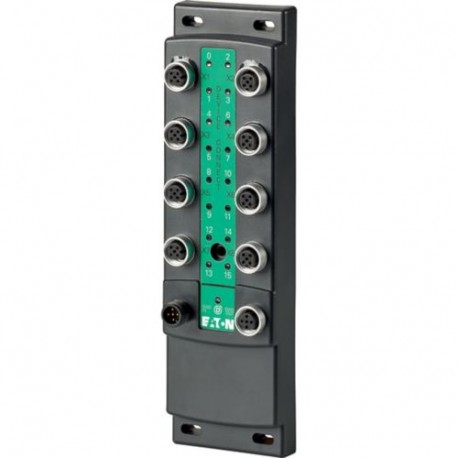

An Eaton Moeller SWD block module I/O module IP69K, 24 V DC, 16 parameterizable.. unit, designated as EU8E-SWD-16DD, functions as a ruggedized distributed input and output device used to connect field sensors and actuators to a centralized SmartWire-DT communication network. Distributed I/O modules are widely utilized in automated industrial machinery to minimize hardwiring requirements and withstand harsh environmental conditions on the shop floor. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Manufacturer: Eaton Moeller
- Manufacturer part number: EU8E-SWD-16DD
- Catalogue code: 174750
- Catalogue title: EU8E-SWD-16DD 174750 Y7-174750 EATON ELECTRIC SWD Block module I/O module IP69K, 24 V DC, 16 parameterizable..
- Product description: General specifications Product Name Eaton EU8E Digital module Catalog Number 174750 Model Code EU8E-SWD-16DD EAN 4015081712366 Product Length/Depth 34 mm Product Height 212.6 mm Product Width 61.6 mm Product Weight 0.32
- Manufacturer summary: SWD Block module I/O module IP69K, 24 V DC, 16 parameterizable inputs/outputs with power supply, 8 M12 I/O sockets EU8E-SWD-16DD
More info
▲General specifications
UL
IEC/EN 61131-2
Features & Functions
Short-circuit protection (sensor supply)
Digital inputs configurable
Digital outputs configurable
Overload protection (sensor supply)
Overload proof (with diagnostics)
For connection of digital I/O signals
General
231 mA, SmartWire-DT network, 24 V, without sensor and without I/O supply
Wall mounting/direct mounting
Ambient conditions, mechanical
Climatic environmental conditions
Dry heat to IEC 60068-2-2
Electro magnetic compatibility
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
2 kV, Supply cable, according to IEC/EN 61131-2, Level 3
10 V/m at 80 - 1000 MHz (according to IEC/EN 61131-2:2008)
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC
Electrical rating
Communication
SWD-IN : M12 plug (A-keyed), 5 pole
SWD-OUT: M12 socket (A-keyed), 5 pole
2 MBit/s, SmartWire-DT
Status indication of input: Yellow LED
Status indication of display outputs: Yellow LED
Input/Output
High: > 15 V DC
Max. 16 Transistor Outputs
Safety
Input to input: no
Between Outputs to SmartWire-DT: no
Inputs for SmartWire-DT: no
