EU1E-SWD-1CX 174721 Y7-174721 EATON ELECTRIC SWD T-Connector counter module IP69K, one counter input with po..
EU1E-SWD-1CX
174721
Y7-174721
EATON - MOELLER
1 Pcs.
Automation > PLC function/technology module
Smartwire Darwin
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

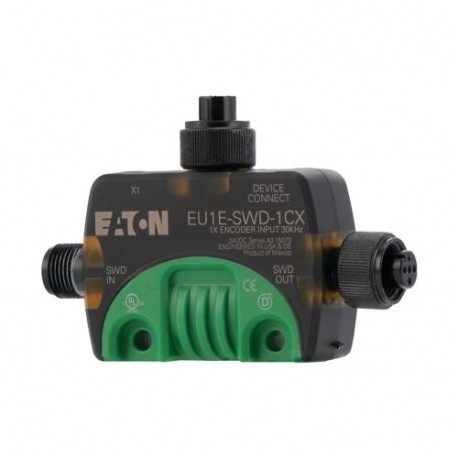

An Eaton Moeller SmartWire-DT T-Connector counter module (EU1E-SWD-1CX) built to capture pulse signals and monitor counting tasks within decentralized automation networks. Such specialized T-connectors and counter modules attach directly to field bus lines to streamline sensor integration and process real-time input data near the point of measurement.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of functions (EF003244): 3
- Redundancy (EF003156): No
- Suitable for counting (EF003248): Yes
- Suitable for weighing (EF003249): No
- Suitable for temperature control (EF008344): No
- Suitable for welding control (EF003251): No
- Suitable for pressure control (EF003252): No
- Suitable for NC (EF003253): No
- Suitable for electronic positioning (EF003255): Yes
- Suitable for CNC (EF003256): No
- Suitable for SSI (EF003254): No
- Suitable for incremental data detection (EF003258): Yes
- Suitable for detection absolute value (EF003259): No
- Suitable for flux controller (EF003260): Yes
- Suitable for flux measurement (EF003261): No
- Suitable for path controller (EF003262): Yes
More info
▲General specifications
UL File No.: E170645
CSA
UL
Features & Functions
Short-circuit protection (sensor supply)
Flux controller possible
Single-axis controller possible
Single-axis positioning possible
For connecting a counter
General
57 mA, SmartWire-DT network, 24 V, without sensor and without I/O supply
IP69
Mounting section (Clip M20)
DIN rail
Incremental data detection
Path controller
Ambient conditions, mechanical
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-3
Electro magnetic compatibility
1 kV, Signal cable, according to IEC/EN 61131-2, Level 3
1 kV, SmartWire-DT cable, according to IEC/EN 61131-2, Level 3
3 V/m at 1.4 - 2 GHz (according to IEC/EN 61131-2:2008)
1 V/m at 2.0 - 2.7 GHz (according to IEC/EN 61131-2:2008)
1 kV, Surge I/O cables, Surge (IEC/EN 61131-2:2008, Level 1), EMC
Electrical rating
Communication
M12 plug (A-keyed), 5 pole, SWD-IN
M12 socket (A-keyed), 5 pole, SWD-OUT
2 MBit/s, SmartWire-DT
Status indication of SmartWire-DT network: Green LED
Input/Output
32 Bit (Counter value)
