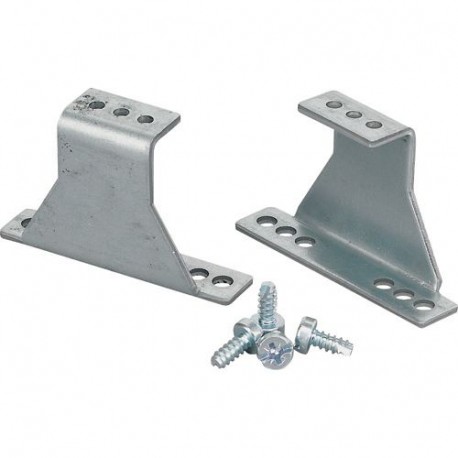

EATON - MOELLER EPAW-TS15 EPAW-TS15 172759 Y7-172759 EATON ELECTRIC Surface mounting angle for mounting rail View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EPAW-TS15 172759 Y7-172759 EATON ELECTRIC Surface mounting angle for mounting rail

EPAW-TS15

172759

Y7-172759

EATON - MOELLER

1 Pcs.

Surface mounting angle for mounting rail EPAW-TS15 The EP standard-compliant installation system is a system for assembling factory-finished, type-approved switchgear combinations

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Surface mounting angle for mounting rail
The EP standard-compliant installation system is a system for assembling factory-finished, type-approved switchgear combinations

General specifications
Product name
Eaton xEnergy Basic installation component
Part no.
EPAW-TS15
EAN
4015081693481
Product Length/Depth
31.5 millimetre
Product height
60 millimetre
Product width
14 millimetre
Product weight
0.1 kilogram
Compliances
RoHS conform
Product Tradename
xEnergy Basic
Product Type
Accessories
Product Sub Type
Installation component
Delivery program
Model
Mounting kit
Color
Other
Technical Data - Mechanical
Material
Metal
Load capacity - max
0 kg
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm
Additional information
RAL-number
0

Technical data ETIM 9.0

Cabinet enclosures (EG000011) / Components for installation (enclosure/cabinet) (EC002620)
Electric engineering, automation, process control engineering / Electrical cabinet, housing, rack / Elements for switching cabinet, housing, rack / Component for installation (electrical cabinet) (ecl@ss13-27-18-28-11 [ACN627016])
Model
Mounting kit
Suitable for enclosure building width
0 mm
Suitable for enclosure building height
0 mm
Suitable for enclosure building depth
0 mm
Width
14 mm
Height
60 mm
Depth
31.5 mm
Max. load capacity
0 kg
Material
Metal
Colour
Other
RAL-number
0

ETIM for 172759 Cabinets and enclosures (EC002620)
Feature Name Feature Value
Model (EF000010) Mounting kit
Suitable for enclosure building width (EF000326) 0 mm
Suitable for enclosure building height (EF009583) 0 mm
Suitable for enclosure building depth (EF000327) 0 mm
Width (EF000008) 14 mm
Height (EF000040) 60 mm
Depth (EF000049) 31.5 mm
Max. load capacity (EF000258) 0 kg
Material (EF002169) Metal
Colour (EF000007) Other
RAL-number (EF000116) 0
