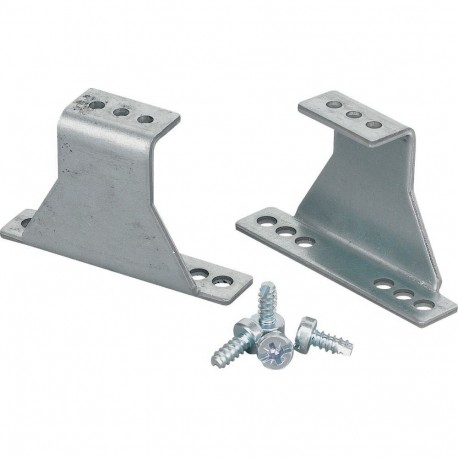

EATON - MOELLER EPAW-TS EPAW-TS 143986 Y7-143986 EATON ELECTRIC Surface Mount Angle for DIN Rail View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EPAW-TS 143986 Y7-143986 EATON ELECTRIC Surface Mount Angle for DIN Rail

EPAW-TS

143986

Y7-143986

EATON - MOELLER

1 Pcs.

Surface Mount Angle for DIN Rail EPAW-TS EPAW-TS. Surface mounting angle for mounting rail The standard flush-mounting EP system is a system for surface mounting factory finished, type-tested switchgear assemblies

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller EPAW-TS 143986 Y7-143986 Surface Mount Angle for DIN Rail is an installation accessory used to angle DIN-mounted components for improved visibility and wire termination access.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Mounting kit
  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 14 mm
  • Height (EF000040): 60 mm
  • Depth (EF000049): 39 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEnergy Basic installation component
Catalog Number
143986
Model Code
EPAW-TS
EAN
4015081405206
Product Length/Depth
39 mm
Product Height
60 mm
Product Width
14 mm
Product Weight
0.11 kg

Delivery program

Model
Mounting kit
Color
Other

Technical data - mechanical

Material
Metal
Load capacity - max
0 kg
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm

Additional information

RAL-number
0

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
