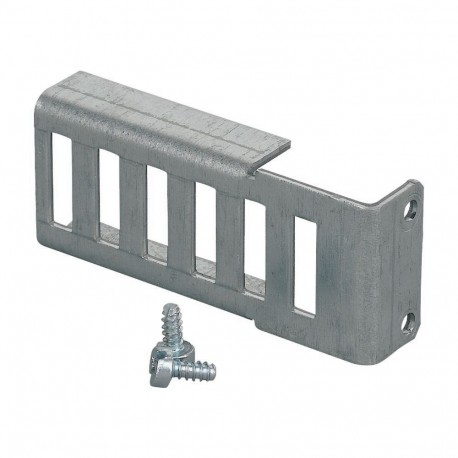

EATON - MOELLER EPAB-TSMP EPAB-TSMP 143985 Y7-143985 EATON ELECTRIC DIN Rail Mounting Plate Support View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EPAB-TSMP 143985 Y7-143985 EATON ELECTRIC DIN Rail Mounting Plate Support

EPAB-TSMP

143985

Y7-143985

EATON - MOELLER

1 Pcs.

DIN Rail Mounting Plate Support EPAB-TSMP EPAB-TSMP. Lowering bracket for mounting rails mounting plate The standard flush-mounting EP system is a system for surface mounting factory finished, type-tested switchgear assemblies

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller EPAB-TSMP DIN rail mounting plate support functions as an adaptable mounting hardware kit within electrical enclosures. Hardware supports of this sort assist technicians in securely anchoring internal mounting rails and device plates inside complex automation control cabinets.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Mounting kit
  • Suitable for enclosure building width (EF000326): 0 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 50 mm
  • Height (EF000040): 50 mm
  • Depth (EF000049): 100 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • RAL-number (EF000116): 0

More info

▲

General specifications

Product Name
Eaton xEnergy Basic installation component
Catalog Number
143985
Model Code
EPAB-TSMP
EAN
4015081405190
Product Length/Depth
100 mm
Product Height
50 mm
Product Width
50 mm
Product Weight
0.44 kg

Delivery program

Model
Mounting kit
Color
Other

Technical data - mechanical

Material
Metal
Load capacity - max
0 kg
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
0 mm

Additional information

RAL-number
0
