SH-E 013147 Y7-13147 EATON ELECTRIC 013147 SH-E
SH-E
013147
Y7-13147
EATON - MOELLER
1 Pcs.
013147 SH-E

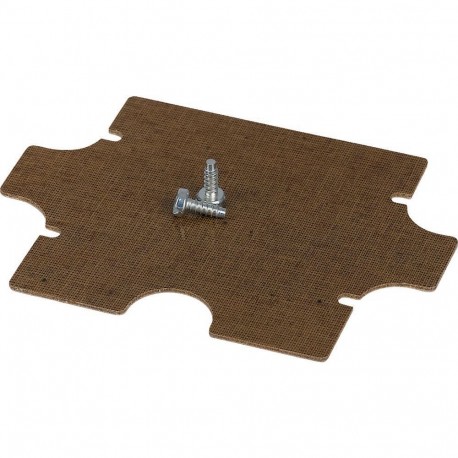

End cover
Eaton xEnergy Safety Ci LV systems LV switchgear. End cover
Plastic end shroud
Automation > Busbar adapter
Connection Accessories for Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton xEnergy Safety Ci other accessory
Catalog Number
013147
Model Code
SH-E
EAN
4015080131472
Product Length/Depth
40 mm
Product Height
120 mm
Product Width
90 mm
Product Weight
0.02 kg
Compliances
RoHS conform
Product specifications
Adapter width
60 mm
Busbar distance
50 mm
Busbar thickness - max
20 mm
Busbar thickness - min
5 mm
Nominal current
0 A
Rail width
30 mm
Electric connection type
None
Mounting rail armament
None
| Feature Name | Feature Value |
|---|---|
| Mounting rail armament (EF003700) | None |
| Type of electric connection (EF003961) | None |
| Rated current In (EF008250) | 0 A |
| Min. busbar thickness (EF006536) | 5 mm |
| Max. busbar thickness (EF003702) | 20 mm |
| Width of the adapter (EF003703) | 60 mm |
| Rail width (EF003704) | 30 mm |
| Busbar distance (EF002638) | 50 mm |
