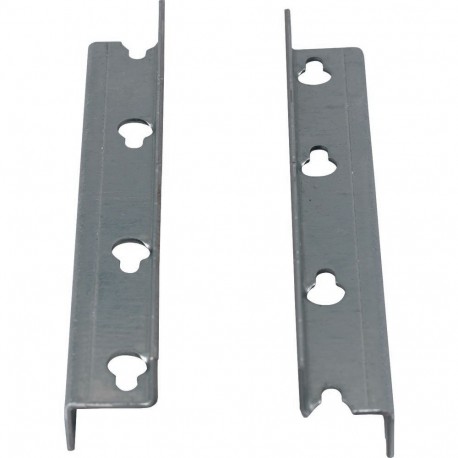

EATON - MOELLER BP-MFL-600 BP-MFL-600 286744 Y7-286744 EATON ELECTRIC Horizontal/Middle add-on connection Element W 600mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

BP-MFL-600 286744 Y7-286744 EATON ELECTRIC Horizontal/Middle add-on connection Element W 600mm

BP-MFL-600

286744

Y7-286744

EATON - MOELLER

1 Pcs.

Horizontal/Middle add-on connection Element W=600mm BP-MFL-600 Eaton xEnergy Basic LV systems Low voltage switchgear. Horizontal/Middle add-on connection Element W=600mm Horizontal/center - add-on element, BP-MFL, width 600 mm, horizontal add-on element between 2 distribution boards mounted on top of each other, incl. screws, for surface-mounted distribution board IP30, 1 kit of top/bottom panels, used for add-on configurations, can be combined with BP-MSL for vertical distribution board mounting, material characteristic: sheet steel, powder-spray painted, RAL 7035, equipment supplied: 1 add-on element, 2 mounting elements, various mounting accessories

Automation > Component for installation (switchgear cabinet)
Enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller BP-MSL-600 horizontal add-on connection element is a mounting kit used to join and stabilize modular enclosure structures side by side or to mount internal dividers. These metal connection parts provide structural rigidity across multi-bay electrical distribution configurations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Mounting kit
  • Suitable for enclosure building width (EF000326): 600 mm
  • Suitable for enclosure building height (EF009583): 0 mm
  • Suitable for enclosure building depth (EF000327): 0 mm
  • Width (EF000008): 615 mm
  • Height (EF000040): 120 mm
  • Depth (EF000049): 70 mm
  • Max. load capacity (EF000258): 0 kg
  • Material (EF002169): Metal
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035

More info

▲

General specifications

Product Name
Eaton xEnergy Basic installation component
Catalog Number
286744
Model Code
BP-MFL-600
EAN
4015082867447
Product Length/Depth
70 mm
Product Height
120 mm
Product Width
615 mm
Product Weight
1.5 kg
Compliances
RoHS conform

Delivery program

Type
Additional equipment
Model
Mounting kit
Color
Gray
Light gray (RAL 7035)

Technical data - mechanical

Surface finishing
With powder coating
Mounting method
Surface mounting
Mounting position
Horizontal
Material
Metal
Load capacity - max
0 kg
Housing material
Sheet steel
Suitable for enclosure building height
0 mm
Suitable for enclosure building length/depth
0 mm
Suitable for enclosure building width
600 mm

Additional information

Functions
Additional equipment
RAL-number
7035

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
