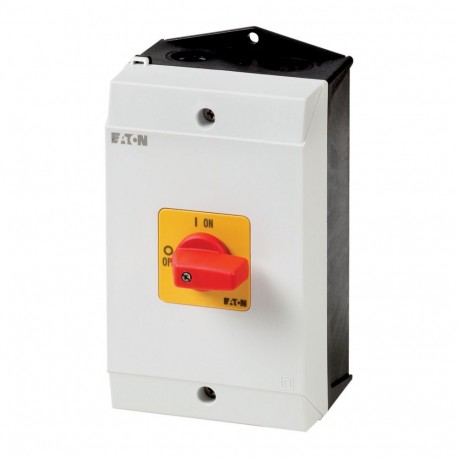

EATON - MOELLER P1-25/I2-RT P1-25/I2-RT 207300 Y7-207300 EATON ELECTRIC On-Off switch, 3 pole, 25 A, Emergency-Stop function, surface mo.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/I2-RT 207300 Y7-207300 EATON ELECTRIC On-Off switch, 3 pole, 25 A, Emergency-Stop function, surface mo..

P1-25/I2-RT

207300

Y7-207300

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole, 25 A, Emergency-Stop function, surface mounting P1-25/I2-RT Eaton Moeller® series P1 On-Off switch, P1, 25 A, surface mounting, 3 pole, Emergency switching off function, with red thumb grip and yellow front plate On-Off switch, P1, Rated uninterrupted current (Iu): 25 A, Functions: Emergency switching off function, Fitted with: Red thumb grip and yellow front plate, Mounting method: Surface mounting, Number of poles: Three-pole, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Industrial facilities utilize emergency stop switches such as the Eaton Moeller P1-25/I2-RT to immediately shut down machinery and protect operators during hazardous situations. Surface-mounted safety disconnects provide high visibility and fast manual intervention on automated production lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 25 A
  • Rated permanent current at AC-23, 400 V (EF011777): 25 A
  • Rated permanent current at AC-21, 400 V (EF009165): 25 A
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 13 kW
  • Switching power at 400 V (EF009166): 13 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
207300
Model Code
P1-25/I2-RT
EAN
4015082073008
Product Length/Depth
107 mm
Product Height
180 mm
Product Width
100 mm
Product Weight
0.43 kg
Certifications
UL
IEC/EN 60947
IEC/EN 60204
VDE 0660
CSA
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
