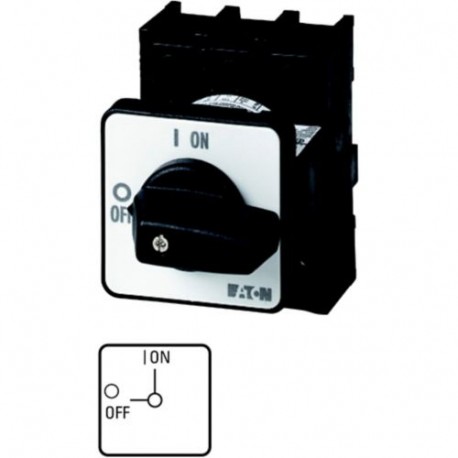

P1-25/E-RT/N 002425 Y7-2425 EATON ELECTRIC On-Off switch, 3 pole + N, 25 A, Emergency-Stop function, flush m..
P1-25/E-RT/N
002425
Y7-2425
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
P1-25/E-RT/N 002425 Y7-2425 EATON ELECTRIC On-Off switch, 3 pole + N, 25 A, Emergency-Stop function, flush m.. functions as a safety control switch equipped with emergency stop capabilities to instantly shut down machinery during hazard events. Engineers integrate these flush-mounted components into control desks and machine faces for immediate operator access. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 25 A
- Rated permanent current at AC-23, 400 V (EF011777): 25 A
- Rated permanent current at AC-21, 400 V (EF009165): 25 A
- Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
- Rated short-time withstand current lcw (EF007050): 0.64 kA
- Rated operation power at AC-23, 400 V (EF007027): 13 kW
- Switching power at 400 V (EF009166): 13 kW
- Conditioned rated short-circuit current Iq (EF001444): 80 kA
More info
▲General specifications
UL
CSA
VDE 0660
CSA Class No.: 3211-05
CE
CSA File No.: 012528
UL File No.: E36332
UL Category Control No.: NLRV
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947-3
IEC/EN 60947
IEC/EN 60204
UL 60947-4-1
