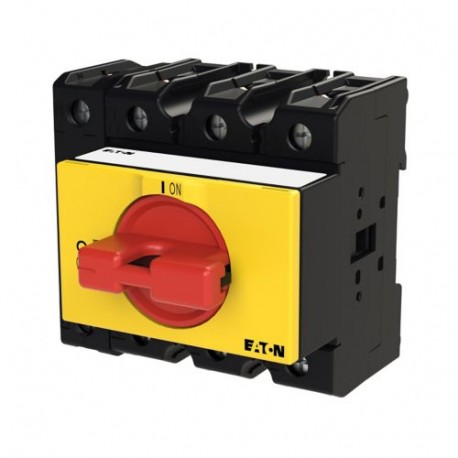

EATON - MOELLER P3-100/IVS-RT/N P3-100/IVS-RT/N 034497 Y7-34497 EATON ELECTRIC On-Off switch, 3 pole + N, 100 A, Emergency-Stop function, se.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P3-100/IVS-RT/N 034497 Y7-34497 EATON ELECTRIC On-Off switch, 3 pole + N, 100 A, Emergency-Stop function, se..

P3-100/IVS-RT/N

034497

Y7-34497

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole + N, 100 A, Emergency-Stop function, service distribution board mounting ON-OFF 3-pole + N 100 A disconnector switch Red/Yellow handle Eaton Moeller® series P3 On-Off switch, P3, 100 A, service distribution board mounting, 3 pole + N, Emergency switching off function, with red thumb grip and yellow front plate On-Off switch, Product range: On-Off switch, Part group reference: P3, Stop Function: Emergency switching off function, with red thumb grip and yellow front plate, Information about equipment supplied: auxiliary contact fitted by user., 3 pole + N, Degree of Protection: Front IP30, Design: service distribution board mounting, Motor rating AC-23A, 50 - 60 Hz 400 V: P = 55 kW, Rated uninterrupted current: Iu = 100 A, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, UL, Switch-disconnector according to IEC/EN 60947-3

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller P3-100/IVS-RT/N on-off switch incorporates an emergency-stop mechanism alongside a neutral pole, designed for comprehensive multi-phase circuit isolation. Such industrial switches are frequently specified for heavy machinery control setups requiring rapid manual shutdown and reliable power interruption.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 100 A
  • Rated permanent current at AC-23, 400 V (EF011777): 100 A
  • Rated permanent current at AC-21, 400 V (EF009165): 100 A
  • Rated operation power at AC-3, 400 V (EF001364): 37 kW
  • Rated short-time withstand current lcw (EF007050): 2 kA
  • Rated operation power at AC-23, 400 V (EF007027): 55 kW
  • Switching power at 400 V (EF009166): 55 kW
  • Conditioned rated short-circuit current Iq (EF001444): 80 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P3 On-off switch
Catalog Number
034497
Model Code
P3-100/IVS-RT/N
EAN
4015080344971
Product Length/Depth
90 mm
Product Height
90 mm
Product Width
90 mm
Product Weight
0.358 kg
Certifications
VDE 0660
CSA
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60947
UL 60947-4-1
CSA File No.: 012528
UL Category Control No.: NLRV
CSA Class No.: 3211-05
UL File No.: E36332
CE
IEC/EN 60204
IEC/EN 60947-3
CSA-C22.2 No. 94
UL
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
