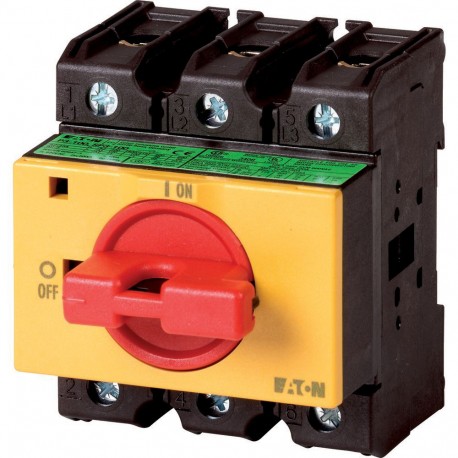

P3-63/IVS-RT/2HI11 012572 Y7-12572 EATON ELECTRIC On-Off switch, 3 pole + 2 N/O + 2 N/C, 63 A, Emergency-Sto..
P3-63/IVS-RT/2HI11
012572
Y7-12572
EATON - MOELLER
1 Pcs.
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eaton Moeller On-Off switch, 3 pole + 2 N/O + 2 N/C, 63 A, Emergency-Sto functions as a heavy-duty cam switch utilized for manual motor control and safety disconnection in industrial machinery. These versatile components interrupt main power supplies while providing auxiliary contacts for signaling and interlocking logic. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as main switch (EF006981): No
- Version as maintenance-/service switch (EF006986): No
- Version as safety switch (EF006985): No
- Version as emergency stop installation (EF006959): Yes
- Version as reversing switch (EF009408): No
- Number of switches (EF005586): 1
- Max. rated operation voltage Ue AC (EF007355): 690 V
- Rated operating voltage (EF001435): 690 V
- Rated permanent current Iu (EF001389): 63 A
- Rated permanent current at AC-23, 400 V (EF011777): 63 A
- Rated permanent current at AC-21, 400 V (EF009165): 63 A
- Rated operation power at AC-3, 400 V (EF001364): 30 kW
- Rated short-time withstand current lcw (EF007050): 1.26 kA
- Rated operation power at AC-23, 400 V (EF007027): 30 kW
- Switching power at 400 V (EF009166): 30 kW
- Conditioned rated short-circuit current Iq (EF001444): 100 kA
More info
▲General specifications
IEC/EN 60947
UL Category Control No.: NLRV
VDE 0660
IEC/EN 60204
UL 60947-4-1
CSA
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
CE
UL File No.: E36332
IEC/EN 60947-3
CSA File No.: 012528
CSA Class No.: 3211-05
