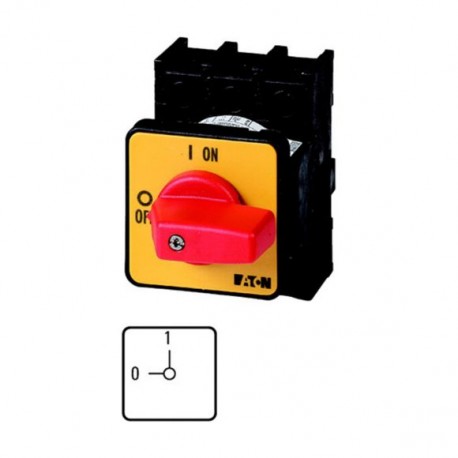

EATON - MOELLER P1-25/E-RT P1-25/E-RT 002388 Y7-2388 EATON ELECTRIC On-Off switch, 3 pole, 25 A, Emergency-Stop function, flush mounting View larger
Images are for illustrative purposes only. Please refer to data sheet for details

P1-25/E-RT 002388 Y7-2388 EATON ELECTRIC On-Off switch, 3 pole, 25 A, Emergency-Stop function, flush mounting

P1-25/E-RT

002388

Y7-2388

EATON - MOELLER

1 Pcs.

On-Off switch, 3 pole, 25 A, Emergency-Stop function, flush mounting ON-OFF 3-pole disconnector switch 25 A Red/Yellow handle Eaton Moeller® series P1 On-Off switch, P1, 25 A, flush mounting, 3 pole, Emergency switching off function, with red thumb grip and yellow front plate On-Off switch, P1, Rated uninterrupted current (Iu): 25 A, Functions: Emergency switching off function, Fitted with: Red thumb grip and yellow front plate, Mounting method: Flush mounting, Number of poles: Three-pole, Degree of Protection: NEMA 12

Connectors > Switch disconnector
Disconnectors and Cam Switches

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller P1-25/E-RT on-off switch is engineered with an emergency stop function to safely interrupt power supply to industrial equipment during hazardous situations. These flush-mounted control devices ensure reliable operational safety across manufacturing plant automation layouts.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as maintenance-/service switch (EF006986): No
  • Version as safety switch (EF006985): No
  • Version as emergency stop installation (EF006959): Yes
  • Version as reversing switch (EF009408): No
  • Number of switches (EF005586): 1
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated operating voltage (EF001435): 690 V
  • Rated permanent current Iu (EF001389): 25 A
  • Rated permanent current at AC-23, 400 V (EF011777): 25 A
  • Rated permanent current at AC-21, 400 V (EF009165): 25 A
  • Rated operation power at AC-3, 400 V (EF001364): 7.5 kW
  • Rated short-time withstand current lcw (EF007050): 0.64 kA
  • Rated operation power at AC-23, 400 V (EF007027): 13 kW
  • Switching power at 400 V (EF009166): 13 kW
  • Conditioned rated short-circuit current Iq (EF001444): 50 kA

More info

▲

General specifications

Product Name
Eaton Moeller® series P1 On-off switch
Catalog Number
002388
Model Code
P1-25/E-RT
EAN
4015080023883
Product Length/Depth
94 mm
Product Height
70 mm
Product Width
49 mm
Product Weight
0.141 kg
Certifications
CE
CSA Class No.: 3211-05
CSA-C22.2 No. 94
CSA-C22.2 No. 60947-4-1-14
IEC/EN 60204
UL Category Control No.: NLRV
IEC/EN 60947
CSA File No.: 012528
VDE 0660
CSA
UL
UL File No.: E36332
UL 60947-4-1
IEC/EN 60947-3
Catalog Notes
Rated Short-time Withstand Current (Icw) for a time of 1 second
