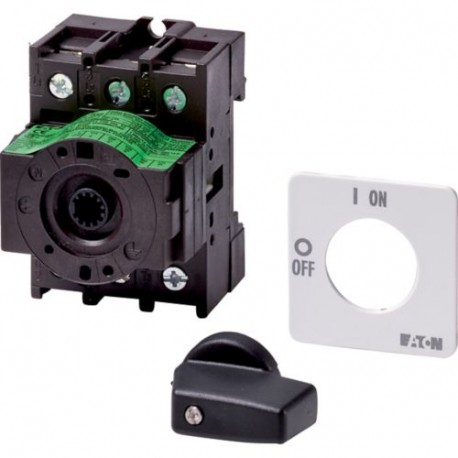

P1-25/XZ 046303 Y7-46303 EATON ELECTRIC Emergency switching off switch, 3p, 25A, replacement switch
P1-25/XZ
046303
Y7-46303
EATON - MOELLER
1 Pcs.
Emergency switching off switch, 3p, 25A, replacement switch
ON-OFF 3-pole disconnect switch 25 A Replacement switch
25 A, Basic switch
On-Off switch, Design: Basic switch, Rated uninterrupted current: Iu = 25 A
Connectors > Switch disconnector
Disconnectors and Cam Switches
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series P1 Main switch
Catalog Number
046303
Model Code
P1-25/XZ
EAN
4015080463030
Product Length/Depth
131 mm
Product Height
70 mm
Product Width
49 mm
Product Weight
0.131 kg
Certifications
CE
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 25 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 25 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 25 A |
| Rated operation power at AC-3, 400 V (EF001364) | 7.5 kW |
| Rated short-time withstand current lcw (EF007050) | 0.64 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 13 kW |
| Switching power at 400 V (EF009166) | 13 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Other |
| Type of control element (EF006976) | Short thumb-grip |
| Interlockable (EF006281) | No |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| With pre-assembled cabling (EF016444) | No |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | 12 |
| Width (EF000008) | 49 mm |
| Height (EF000040) | 70 mm |
| Depth (EF000049) | 131 mm |
