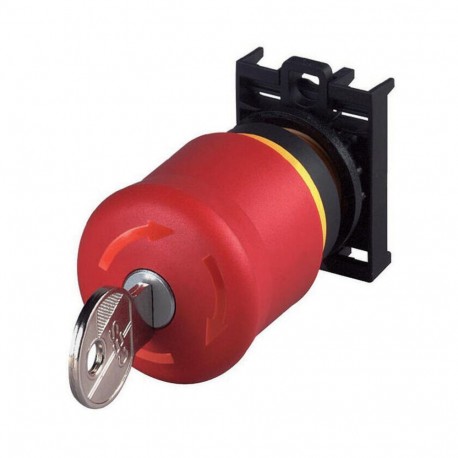

M22-PVS/K01 216514 Y7-216514 EATON ELECTRIC Emergency switching off key-operated button, 1 N/C, front mount
M22-PVS/K01
216514
Y7-216514
EATON - MOELLER
5 Pcs.
Automation > Emergency stop complete
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The M22-PVS/K01 216514 Y7-216514 EATON ELECTRIC Emergency switching off key-operated button, 1 N/C, front mount provides secure, restricted-access emergency shutdown capabilities for sensitive industrial installations. The key-operated mechanism ensures that only authorized personnel can reset the safety circuit after an interruption event. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Unlocking method: Key-release
- Number of contacts as normally closed contact: 1
- Number of contacts as normally open contact: 0
- Degree of protection (IP): IP67/IP69K
- Degree of protection (NEMA): 4X, 13
- Mounting method: Built-in
- With lighting: No
- Supply voltage lamp: 0 V
- Hole diameter: 22.5 mm
- Connection type auxiliary circuit: Screw connection
- Diameter cap: 38 mm
More info
▲General specifications
CSA File No.: 012528
IEC/EN 60947-5
UL File No.: E29184
CSA
CSA Class No.: 3211-03
UL
UL 508
VDE 0660
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
IEC/EN 60947
UL Category Control No.: NKCR
DNV
GL
LR
Features & Functions
Classical
General
NEMA 4X, 13
Ambient conditions, mechanical
50 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
