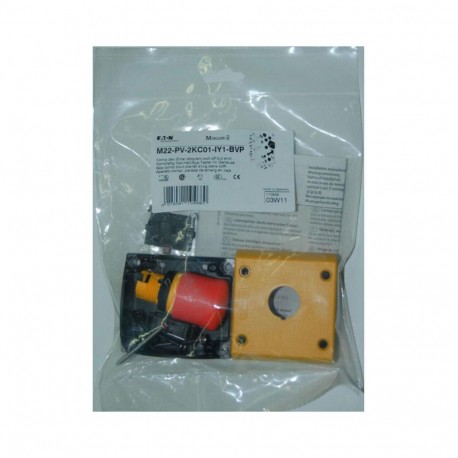

EATON - MOELLER M22-PV-2KC01-IY1-BVP M22-PV-2KC01-IY1-BVP 110939 Y7-110939 EATON ELECTRIC Emergency stop button in enclosure, complete device View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-PV-2KC01-IY1-BVP 110939 Y7-110939 EATON ELECTRIC Emergency stop button in enclosure, complete device

M22-PV-2KC01-IY1-BVP

110939

Y7-110939

EATON - MOELLER

1 Pcs.

Emergency stop button in enclosure, complete device M22-PV-2KC01-IY1-BVP Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton, RMQ-Titan, Blister pack for hanging Emergency stop/emergency switching off pushbutton, Product range: RMQ-Titan, Description: Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no

Automation > Control circuit devices combination in enclosure
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton
Catalog Number
110939
Model Code
M22-PV-2KC01-IY1-BVP
EAN
4015081104680
Product Length/Depth
70 mm
Product Height
105 mm
Product Width
70 mm
Product Weight
0.22 kg
Certifications
CE

Features & Functions

Enclosure color
Yellow
Enclosure material
Plastic

General

Degree of protection
IP Other
NEMA 4X, 13
Mounting method
Surface mounting
Suitable for
Emergency stop

Electrical rating

Rated control supply voltage (Us) at AC, 50 Hz - min
115 V
Rated control supply voltage (Us) at AC, 50 Hz - max
500 V
Rated control supply voltage (Us) at AC, 60 Hz - min
115 V
Rated control supply voltage (Us) at AC, 60 Hz - max
500 V
Rated control supply voltage (Us) at DC - min
24 V
Rated control supply voltage (Us) at DC - max
220 V

Communication

Connection to SmartWire-DT
No

Contacts

Number of contacts (change-over contacts)
0
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
0

Design verification

10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 110939 Low-voltage industrial controls and switchgear (EC000225)
Feature Name Feature Value
Number of command positions (EF001372) 1
Number of push buttons (EF005558) 0
Number of indicator lights (EF001965) 0
Number of key switches (EF005590) 0
Number of selector switches (EF005567) 0
Number of mushroom-shaped push-buttons (EF006670) 1
Suitable for emergency stop (EF001433) true
Rated control supply voltage AC 50 Hz (EF003978) 115 V
Rated control supply voltage AC 60 Hz (EF003979) 115 V
Rated control supply voltage DC (EF003980) 24 V
Power consumption (EF000346) None W
Colour housing cover (EF001373) Yellow
Housing colour (EF000136) Yellow
Housing material (EF001596) Plastic
Number of contacts as normally open contact (EF008256) 0
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as change-over contact (EF008257) 0
Degree of protection (IP) (EF005474) Other
Degree of protection (NEMA) (EF011959) 4X, 13

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
