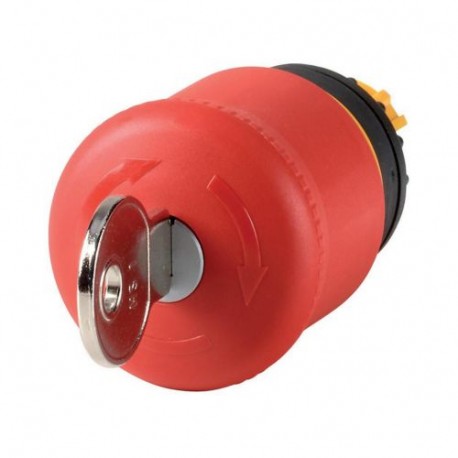

EATON - MOELLER M22-PVS-MS* M22-PVS-MS* 216880 Y7-216880 EATON ELECTRIC Industrial Automation Bussines and Industrial Control Devices IE.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-PVS-MS* 216880 Y7-216880 EATON ELECTRIC Industrial Automation Bussines and Industrial Control Devices IE..

M22-PVS-MS*

216880

Y7-216880

EATON - MOELLER

1 Pcs.

Industrial Automation Bussines and Industrial Control Devices IEC - Pushbuttons M22-PVS-MS* Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton, RMQ-Titan, Mushroom-shaped, 38 mm, Non-illuminated, Key-release, selectable, Red, yellow, RAL 3000, Not suitable for master key systems Emergency stop/emergency switching off pushbutton, Product range: RMQ-Titan, Single unit, Design: Mushroom-shaped, Diameter: 38 mm, Illumination: Non-illuminated, Key-release, Description: Tamper-proof according to ISO 13850/EN 418, Lock mechanism: selectable, Color Mushroom head: Red, Color Base: yellow, RAL 3000, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Front dimensions: 35, Instructions: Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11, Information about equipment supplied: 1 key included as standard, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller emergency-stop control device (part number M22-PVS-MS*) is installed on industrial machinery to provide reliable safety halting functions when manually actuated. The key-operated latching design prevents unauthorized resetting of safety circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Construction type lens (EF006253): Round
  • Diameter cap (EF001423): 38 mm
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X, 13
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): No
  • With lighting (EF003829): No
  • Supply voltage lamp (EF006522): 0 V
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): No
  • Suitable for emergency stop (EF001433): Yes

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton
Catalog Number
216880
Model Code
M22-PVS-MS*
Product Length/Depth
93 mm
Product Height
38 mm
Product Width
38 mm
Product Weight
0.06 kg
Certifications
CSA File No.: 012528
CE
UL Category Control No.: NKCR
VDE 0660
CSA-C22.2 No. 94-91
CSA-C22.2 No. 14-05
CSA
IEC/EN 60947
UL
UL 508
IEC/EN 60947-5
UL File No.: E29184
CSA Class No.: 3211-03
DNV
GL
LR
Catalog Notes
Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
