View larger
Images are for illustrative purposes only. Please refer to data sheet for details

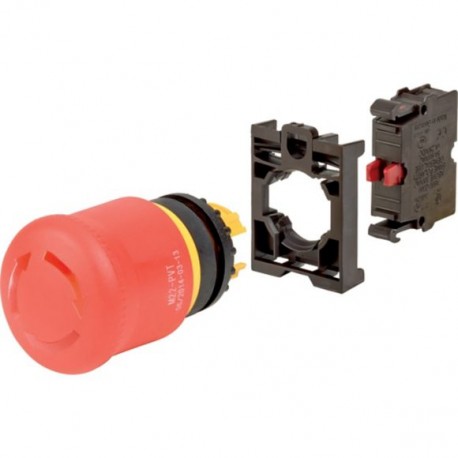

M22-PVT-K01-BVP 132624 Y7-132624 EATON ELECTRIC Emergency-stop key-release mushroom, complete device
M22-PVT-K01-BVP
132624
Y7-132624
EATON - MOELLER
1 Pcs.
Emergency-stop key-release mushroom, complete device
M22-PVT-K01-BVP
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton, 1 NC, RMQ-Titan, Blister pack for hanging
Emergency stop/emergency switching off pushbutton, Product range: RMQ-Titan, Description: Blister pack for hanging., Complete practical solution., Can be ordered using a single article no., Connection to SmartWire-DT: no
Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton
Catalog Number
132624
Model Code
M22-PVT-K01-BVP
EAN
4015081295692
Product Length/Depth
40 mm
Product Height
210 mm
Product Width
130 mm
Product Weight
0.06 kg
Certifications
CE
Features & Functions
Bezel color
Other
Bezel material
Other
Unlocking method
Turn-release
General
Degree of protection
IP67
NEMA 4X, 13
NEMA 4X, 13
Opening diameter
22.5 mm
Suitable for
Emergency stop
Actuator
Actuator color
Red
Actuator function
Switching function latching
| Feature Name | Feature Value |
|---|---|
| Colour button (EF000190) | Red |
| Construction type lens (EF006253) | Round |
| Diameter cap (EF001423) | 38 mm |
| Hole diameter (EF000079) | 22.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Degree of protection (IP) (EF005474) | IP67 |
| Degree of protection (NEMA) (EF011959) | 4X, 13 |
| Type of button (EF001546) | High |
| Suitable for lighting (EF001142) | No |
| With lighting (EF003829) | No |
| Supply voltage lamp (EF006522) | 0 V |
| Switching function latching (EF007447) | Yes |
| Spring-return (EF001407) | No |
| With front ring (EF006014) | No |
| Material front ring (EF005972) | Other |
| Colour front ring (EF002429) | Other |
| Suitable for emergency stop (EF001433) | Yes |
| Unlocking method (EF001403) | Turn-release |
