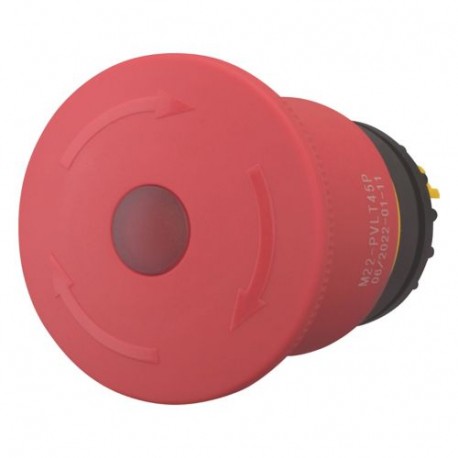

M22-PVLT45P 121460 Y7-121460 EATON ELECTRIC Emergency switching off, 45mm, turn-release
M22-PVLT45P
121460
Y7-121460
EATON - MOELLER
1 Pcs.
Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22-PVLT45P is an emergency switching off actuator featuring a turn-release mechanism designed for immediate power interruption on automation machinery. Plant engineers mount these units on control enclosures to comply with machine safety protocols.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Construction type lens (EF006253): Round
- Diameter cap (EF001423): 45 mm
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Degree of protection (IP) (EF005474): IP67/IP69K
- Degree of protection (NEMA) (EF011959): 4X
- Type of button (EF001546): High
- Suitable for lighting (EF001142): Yes
- With lighting (EF003829): No
- Supply voltage lamp (EF006522): 0 V
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): No
- Suitable for emergency stop (EF001433): Yes
More info
▲General specifications
VDE 0660
DNV
GL
LR
Features & Functions
Classical
General
NEMA 4X
Illumination
Ambient conditions, mechanical
50 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
Actuator
Switching function latching
