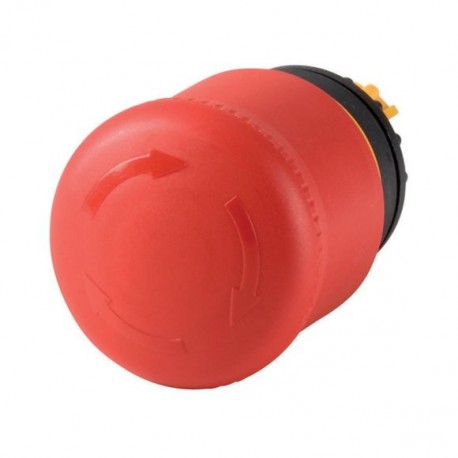

EATON - MOELLER M22-PVT M22-PVT 263467 Y7-263467 EATON ELECTRIC Emergency-stop pushbutton, non-illuminated, turn-release View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-PVT 263467 Y7-263467 EATON ELECTRIC Emergency-stop pushbutton, non-illuminated, turn-release

M22-PVT

M22-PVT

Y7-263467

EATON - MOELLER

1 unit

Emergency-stop pushbutton, non-illuminated, turn-release M22-PVT Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton, RMQ-Titan, Mushroom-shaped, 38 mm, Non-illuminated, Turn-to-release function, Red, yellow, RAL 3000 Emergency stop/emergency switching off pushbutton, Product range: RMQ-Titan, Single unit, Design: Mushroom-shaped, Diameter: 38 mm, Illumination: Non-illuminated, Turn-to-release function, Description: Tamper-proof according to ISO 13850/EN 418, Color Mushroom head: Red, Color Base: yellow, RAL 3000, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Front dimensions: 35, Instructions: Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton
Catalog Number
263467
Model Code
M22-PVT
EAN
4015082634674
Product Length/Depth
38 mm
Product Height
70 mm
Product Width
38 mm
Product Weight
0.045 kg
Compliances
CE Marked
Certifications
UL 508
IEC 60947-5
EN 60947-5
CSA Std. C22.2 No. 14-05
CSA Std. C22.2 No. 94-91
VDE
CSA
CSA File No.: 012528
CSA-C22.2 No. 94-91
UL
UL Category Control No.: NKCR
VDE 0660
CSA Class No.: 3211-03
CSA-C22.2 No. 14-05
IEC/EN 60947-5
CE
IEC/EN 60947
UL File No.: E29184
DNV
GL
LR
Catalog Notes
Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11

ETIM for 263467 Low-voltage industrial controls and switchgear (EC001038)
Feature Name Feature Value
Colour button (EF000190) Red
Construction type lens (EF006253) Round
Diameter cap (EF001423) 38 mm
Hole diameter (EF000079) 22.5 mm
Width opening (EF004565) 0 mm
Height opening (EF004778) 0 mm
Degree of protection (IP) (EF005474) IP67/IP69K
Degree of protection (NEMA) (EF011959) 4X, 13
Type of button (EF001546) High
Suitable for lighting (EF001142) No
With lighting (EF003829) No
Supply voltage lamp (EF006522) 0 V
Switching function latching (EF007447) Yes
Spring-return (EF001407) No
With front ring (EF006014) No
Material front ring (EF005972) Other
Colour front ring (EF002429) Other
Suitable for emergency stop (EF001433) Yes
Unlocking method (EF001403) Turn-release
