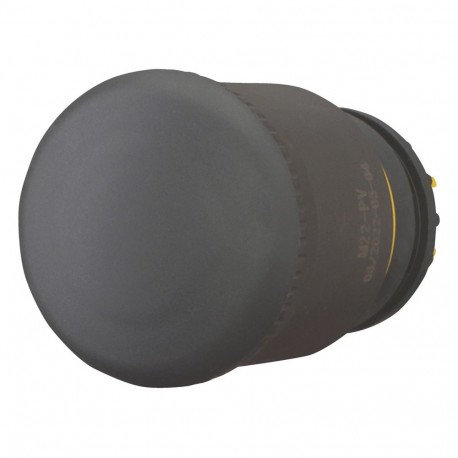

EATON - MOELLER M22S-PV M22S-PV 225528 Y7-225528 EATON ELECTRIC Emergency-stop pushbutton, non-illuminated View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22S-PV 225528 Y7-225528 EATON ELECTRIC Emergency-stop pushbutton, non-illuminated

M22S-PV

225528

Y7-225528

EATON - MOELLER

1 Pcs.

Emergency-stop pushbutton, non-illuminated M22S-PV Eaton Moeller® series M22 HALT/STOP-Button, RMQ-Titan, Mushroom-shaped, 38 mm, Non-illuminated, Pull-to-release function, Black, yellow, RAL 9005 HALT/STOP-Button, Product range: RMQ-Titan, Single unit, Design: Mushroom-shaped, Diameter: 38 mm, Illumination: Non-illuminated, Pull-to-release function, Color Mushroom head: Black, Color Base: yellow, Color RAL Value: RAL 9005, Degree of Protection: IP66, IP69K, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 35, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller M22S-PV is an emergency-stop pushbutton engineered to interrupt control circuits safely during hazardous situations on machinery. These non-illuminated operators provide clear visual cues and immediate physical intervention points on control desks and panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Black
  • Construction type lens (EF006253): Round
  • Diameter cap (EF001423): 38 mm
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X, 13
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): No
  • With lighting (EF003829): No
  • Supply voltage lamp (EF006522): 0 V
  • Switching function latching (EF007447): No
  • Spring-return (EF001407): No
  • With front ring (EF006014): No
  • Suitable for emergency stop (EF001433): No

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton
Catalog Number
225528
Model Code
M22S-PV
EAN
4015082255282
Product Length/Depth
38 mm
Product Height
70 mm
Product Width
38 mm
Product Weight
0.039 kg
Compliances
CE Marked
Certifications
CSA Std. C22.2 No. 14-05
IEC 60947-5
EN 60947-5
CSA Std. C22.2 No. 94-91
UL 508
VDE
VDE 0660
IEC/EN 60947
IEC/EN 60947-5
CSA Class No.: 3211-03
UL
UL File No.: E29184
CE
CSA File No.: 012528
CSA-C22.2 No. 14-05
CSA-C22.2 No. 94-91
UL Category Control No.: NKCR
CSA
DNV
GL
LR
