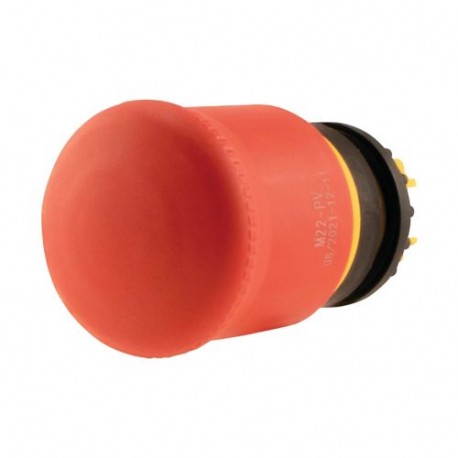

M22-PV 216876 Y7-216876 EATON ELECTRIC Emergency-stop pushbutton, non-illuminated
M22-PV
216876
Y7-216876
EATON - MOELLER
5 Pcs.
Emergency-stop pushbutton, non-illuminated
M22-PV
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton, RMQ-Titan, Mushroom-shaped, 38 mm, Non-illuminated, Pull-to-release function, Red, yellow, RAL 3000
Emergency stop/emergency switching off pushbutton, Product range: RMQ-Titan, Single unit, Design: Mushroom-shaped, Diameter: 38 mm, Illumination: Non-illuminated, Pull-to-release function, Description: Tamper-proof according to ISO 13850/EN 418, Color Mushroom head: Red, Color Base: yellow, RAL 3000, Degree of Protection: IP66, IP69K, Connection to SmartWire-DT: no, Front dimensions: 35, Instructions: Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11, Standards: IEC/EN 60947, VDE 0660
Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
| Product Name | Eaton Moeller® series M22 emergency stop/emergency switching off pushbutton |
| Catalog Number | 216876 |
| Model Code | M22-PV |
| EAN | 4015082168766 |
| Product Length/Depth | 38 mm |
| Product Height | 70 mm |
| Product Width | 38 mm |
| Product Weight | 0.039 kg |
| Compliances | CE Marked |
| Certifications | EN 60947-5 CSA Std. C22.2 No. 94-91 IEC 60947-5 UL 508 CSA Std. C22.2 No. 14-05 VDE UL CE CSA File No.: 012528 IEC/EN 60947-5 CSA IEC/EN 60947 UL File No.: E29184 CSA Class No.: 3211-03 CSA-C22.2 No. 14-05 CSA-C22.2 No. 94-91 VDE 0660 UL Category Control No.: NKCR DNV GL LR |
| Catalog Notes | Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11 |
Product specifications
| Type | Controlled stop pushbutton/emergency-stop button |
| Actuator color | Red |
| Features | Tamper-proof (according to ISO 13850, EN 418) |
| Actuator function | Pull-to-release Switching function latching |
| 10.10 Temperature rise | Not applicable. |
| 10.11 Short-circuit rating | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.12 Electromagnetic compatibility | Is the panel builder's responsibility. The specifications for the switchgear must be observed. |
| 10.13 Mechanical function | The device meets the requirements, provided the information in the instruction leaflet (IL) is observed. |
| 10.2.2 Corrosion resistance | Meets the product standard's requirements. |
| 10.2.3.1 Verification of thermal stability of enclosures | Meets the product standard's requirements. |
| 10.2.3.2 Verification of resistance of insulating materials to normal heat | Meets the product standard's requirements. |
| 10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects | Meets the product standard's requirements. |
| 10.2.4 Resistance to ultra-violet (UV) radiation | Please enquire |
| 10.2.5 Lifting | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.6 Mechanical impact | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.2.7 Inscriptions | Meets the product standard's requirements. |
| 10.3 Degree of protection of assemblies | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.4 Clearances and creepage distances | Meets the product standard's requirements. |
| 10.5 Protection against electric shock | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.6 Incorporation of switching devices and components | Does not apply, since the entire switchgear needs to be evaluated. |
| 10.7 Internal electrical circuits and connections | Is the panel builder's responsibility. |
| 10.8 Connections for external conductors | Is the panel builder's responsibility. |
| 10.9.2 Power-frequency electric strength | Is the panel builder's responsibility. |
| 10.9.3 Impulse withstand voltage | Is the panel builder's responsibility. |
| 10.9.4 Testing of enclosures made of insulating material | Is the panel builder's responsibility. |
| Operating frequency | 600 Operations/h |
| Button color | Red |
| Climatic proofing | Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30 |
| Connection to SmartWire-DT | No |
| Base color | Yellow |
| Actuating force | 50 N |
| Actuator diameter | 38 mm |
| Ambient operating temperature - max | 70 °C |
| Ambient operating temperature - min | -25 °C |
| Diameter cap | 38 mm |
| Equipment heat dissipation, current-dependent Pvid | 0 W |
| Force for positive opening - min | 0 N |
| Heat dissipation capacity Pdiss | 0 W |
| Heat dissipation per pole, current-dependent Pvid | 0 W |
| Opening diameter | 22.5 mm |
| Opening height | 0 mm |
| RAL-number | 3000 |
| Rated operational current for specified heat dissipation (In) | 0 A |
| Illumination | Non-illuminated |
| Bezel color | Other |
| Shock resistance | Mechanical, According to IEC/EN 60068-2-27 50 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms |
| Color | Red |
| Bezel material | Other |
| Design | Mushroom-shaped Classical |
| Mounting position | As required |
| Degree of protection | IP66 NEMA 4X, 13 |
| Front element type | High |
| Lens type | Round |
| Lifespan, mechanical | 100,000 Operations |
| Static heat dissipation, non-current-dependent Pvs | 0 W |
| Width opening | 0 mm |
| Product category | RMQ-Titan |
| Size | Front dimensions: 35 mm |
| Supply voltage lamp | 0 V |
| Suitable for | Emergency stop |
| Unlocking method | Pull-release |
| Feature Name | Feature Value |
|---|---|
| Colour button (EF000190) | Red |
| Construction type lens (EF006253) | Round |
| Diameter cap (EF001423) | 38 mm |
| Hole diameter (EF000079) | 22.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Degree of protection (IP) (EF005474) | IP66 |
| Degree of protection (NEMA) (EF011959) | 4X, 13 |
| Type of button (EF001546) | High |
| Suitable for lighting (EF001142) | No |
| With lighting (EF003829) | No |
| Supply voltage lamp (EF006522) | 0 V |
| Switching function latching (EF007447) | Yes |
| Spring-return (EF001407) | No |
| With front ring (EF006014) | No |
| Material front ring (EF005972) | Other |
| Colour front ring (EF002429) | Other |
| Suitable for emergency stop (EF001433) | Yes |
| Unlocking method (EF001403) | Pull-release |
