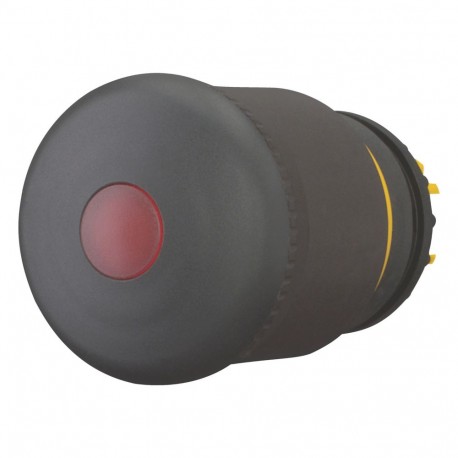

M22S-PVL 230962 Y7-230962 EATON ELECTRIC Emergency-stop pushbutton, illuminated
M22S-PVL
230962
Y7-230962
EATON - MOELLER
1 Pcs.
Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
M22S-PVL 230962 Y7-230962 EATON ELECTRIC Emergency-stop pushbutton, illuminated is an Eaton Moeller emergency-stop pushbutton designed to provide immediate circuit opening capabilities while offering visual status indication on automation panels. Illuminated operators help maintain workplace safety compliance by remaining clearly visible in diverse lighting conditions.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Black
- Construction type lens (EF006253): Round
- Diameter cap (EF001423): 38 mm
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Degree of protection (IP) (EF005474): IP67/IP69K
- Degree of protection (NEMA) (EF011959): 4X, 13
- Type of button (EF001546): High
- Suitable for lighting (EF001142): Yes
- With lighting (EF003829): No
- Supply voltage lamp (EF006522): 0 V
- Switching function latching (EF007447): No
- Spring-return (EF001407): No
- With front ring (EF006014): No
- Suitable for emergency stop (EF001433): No
More info
▲General specifications
CSA Class No.: 3211-03
UL Category Control No.: NKCR
CSA-C22.2 No. 94-91
UL
CE
CSA
CSA-C22.2 No. 14-05
IEC/EN 60947
IEC/EN 60947-5
CSA File No.: 012528
UL File No.: E29184
VDE 0660
DNV
GL
LR
Features & Functions
Classical
General
NEMA 4X, 13
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
With SWD-RMQ connections
