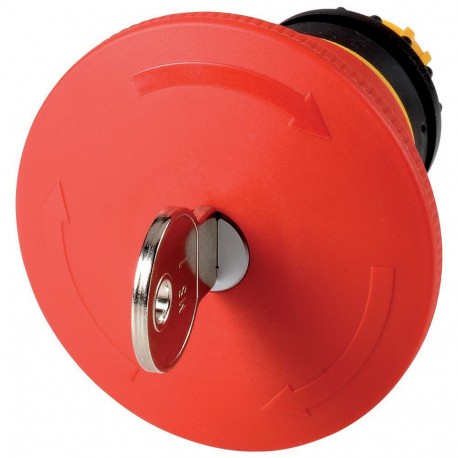

EATON - MOELLER M22-PVS60P-MS* M22-PVS60P-MS* 121471 Y7-121471 EATON ELECTRIC Emergency-stop pushbutton, D 60mm, key unlocking, MS2-20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-PVS60P-MS* 121471 Y7-121471 EATON ELECTRIC Emergency-stop pushbutton, D 60mm, key unlocking, MS2-20

M22-PVS60P-MS*

121471

Y7-121471

EATON - MOELLER

1 Pcs.

Emergency-stop pushbutton, D=60mm, key unlocking, MS2-20 M22-PVS60P-MS* Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton, RMQ-Titan, Palm-tree shape, 60 mm, Non-illuminated, Key-release, selectable, Red, yellow, RAL 3000, Not suitable for master key systems Emergency stop/emergency switching off pushbutton, Product range: RMQ-Titan, Single unit, Design: Palm-tree shape, Diameter: 60 mm, Illumination: Non-illuminated, Key-release, Description: Tamper-proof according to ISO 13850/EN 418, Lock mechanism: selectable, Color Mushroom head: Red, Color Base: yellow, RAL 3000, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Instructions: Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11, Information about equipment supplied: 1 key included as standard, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Eaton Moeller M22-PVS60P-MS* emergency-stop pushbutton delivers dependable circuit interruption for safety-rated industrial systems. Equipped with key unlocking and a large cap profile, these devices prevent accidental resets and ensure compliance on complex machinery installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Construction type lens (EF006253): Round
  • Diameter cap (EF001423): 60 mm
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Degree of protection (IP) (EF005474): IP67/IP69K
  • Degree of protection (NEMA) (EF011959): 4X
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): No
  • With lighting (EF003829): No
  • Supply voltage lamp (EF006522): 0 V
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): No
  • Suitable for emergency stop (EF001433): Yes

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton
Catalog Number
121471
Model Code
M22-PVS60P-MS*
Product Length/Depth
93 mm
Product Height
60 mm
Product Width
60 mm
Product Weight
0.082 kg
Certifications
IEC/EN 60947
VDE 0660
DNV
GL
LR
Catalog Notes
Not suitable for master key systems

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
