View larger
Images are for illustrative purposes only. Please refer to data sheet for details

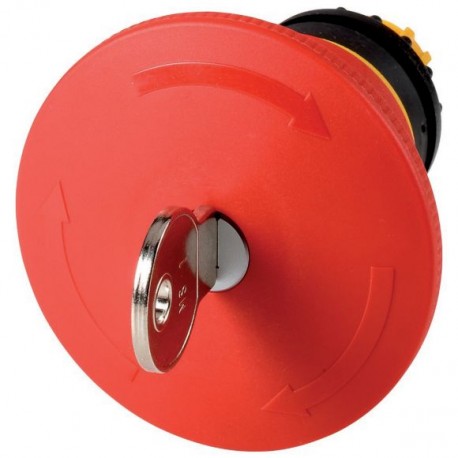

M22-PVS45P-MS* 121470 Y7-121470 EATON ELECTRIC Emergency-stop pushbutton, D 45mm, key unlocking, MS2-20
M22-PVS45P-MS*
121470
Y7-121470
EATON - MOELLER
1 Pcs.
Emergency-stop pushbutton, D=45mm, key unlocking, MS2-20
M22-PVS45P-MS*
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton, RMQ-Titan, Palm-tree shape, 45 mm, Non-illuminated, Key-release, selectable, Red, yellow, RAL 3000, Not suitable for master key systems
Emergency stop/emergency switching off pushbutton, Product range: RMQ-Titan, Single unit, Design: Palm-tree shape, Diameter: 45 mm, Illumination: Non-illuminated, Key-release, Description: Tamper-proof according to ISO 13850/EN 418, Lock mechanism: selectable, Color Mushroom head: Red, Color Base: yellow, RAL 3000, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Instructions: Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11, Information about equipment supplied: 1 key included as standard, Standards: IEC/EN 60947, VDE 0660
Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton
Catalog Number
121470
Model Code
M22-PVS45P-MS*
Product Length/Depth
93 mm
Product Height
45 mm
Product Width
45 mm
Product Weight
0.062 kg
Certifications
VDE 0660
IEC/EN 60947
DNV
GL
LR
IEC/EN 60947
DNV
GL
LR
Catalog Notes
Not suitable for master key systems
| Feature Name | Feature Value |
|---|---|
| Colour button (EF000190) | Red |
| Construction type lens (EF006253) | Round |
| Diameter cap (EF001423) | 45 mm |
| Hole diameter (EF000079) | 22.5 mm |
| Width opening (EF004565) | 0 mm |
| Height opening (EF004778) | 0 mm |
| Degree of protection (IP) (EF005474) | IP67/IP69K |
| Degree of protection (NEMA) (EF011959) | 4X |
| Type of button (EF001546) | High |
| Suitable for lighting (EF001142) | No |
| With lighting (EF003829) | No |
| Supply voltage lamp (EF006522) | 0 V |
| Switching function latching (EF007447) | Yes |
| Spring-return (EF001407) | No |
| With front ring (EF006014) | No |
| Material front ring (EF005972) | Other |
| Colour front ring (EF002429) | Other |
| Suitable for emergency stop (EF001433) | Yes |
| Unlocking method (EF001403) | Key-release |
