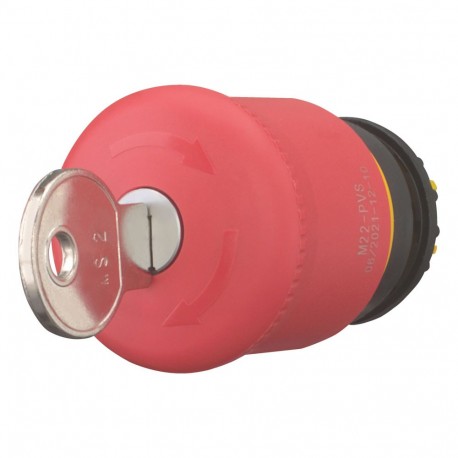

EATON - MOELLER M22-PVS M22-PVS 216879 Y7-216879 EATON ELECTRIC Emergency-stop pushbutton, D 38mm, key unlocking, MS1 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-PVS 216879 Y7-216879 EATON ELECTRIC Emergency-stop pushbutton, D 38mm, key unlocking, MS1

M22-PVS

216879

Y7-216879

EATON - MOELLER

1 Pcs.

Emergency-stop pushbutton, D=38mm, key unlocking, MS1 M22-PVS Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton, RMQ-Titan, Mushroom-shaped, 38 mm, Non-illuminated, Key-release, Red, yellow, RAL 3000, Not suitable for master key systems Emergency stop/emergency switching off pushbutton, Product range: RMQ-Titan, Single unit, Design: Mushroom-shaped, Diameter: 38 mm, Illumination: Non-illuminated, Key-release, Description: Tamper-proof according to ISO 13850/EN 418, Color Mushroom head: Red, Color Base: yellow, RAL 3000, Degree of Protection: IP66, IP67, IP69K, Connection to SmartWire-DT: no, Front dimensions: 35, Instructions: Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11, Information about equipment supplied: 1 key included as standard, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An M22-PVS Eaton Moeller emergency-stop pushbutton functions as a safety control component installed on manufacturing equipment, control panels, and hazardous machinery. These components provide reliable circuit interruption when operators press the cap, locking in place until intentionally reset to prevent accidental machine restart. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button: Red
  • Construction type lens: Round
  • Diameter cap: 38 mm
  • Hole diameter: 22.5 mm
  • Width opening: 0 mm
  • Height opening: 0 mm
  • Degree of protection (IP): IP67/IP69K
  • Degree of protection (NEMA): 4X, 13
  • Type of button: High
  • Suitable for lighting: No
  • With lighting: No
  • Supply voltage lamp: 0 V
  • Switching function latching: Yes
  • Spring-return: No
  • With front ring: No
  • Suitable for emergency stop: Yes

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton
Catalog Number
216879
Model Code
M22-PVS
EAN
4015082168797
Product Length/Depth
93 mm
Product Height
38 mm
Product Width
38 mm
Product Weight
0.06 kg
Compliances
CE Marked
Certifications
EN 60947-5
IEC 60947-5
CSA Std. C22.2 No. 94-91
CSA Std. C22.2 No. 14-05
UL 508
VDE
CSA File No.: 012528
CSA-C22.2 No. 94-91
VDE 0660
UL
CE
IEC/EN 60947
UL File No.: E29184
CSA Class No.: 3211-03
IEC/EN 60947-5
UL Category Control No.: NKCR
CSA
CSA-C22.2 No. 14-05
DNV
GL
LR
Catalog Notes
Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11
