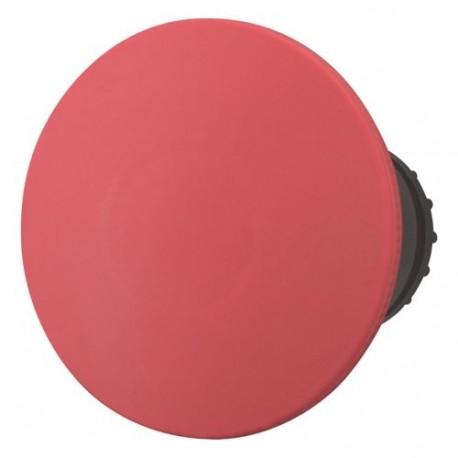

EATON - MOELLER M22-PV60P M22-PV60P 152864 Y7-152864 EATON ELECTRIC Emergency-stop/off pushbutton, D 60mm, pull release View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-PV60P 152864 Y7-152864 EATON ELECTRIC Emergency-stop/off pushbutton, D 60mm, pull release

M22-PV60P

152864

Y7-152864

EATON - MOELLER

1 Pcs.

Emergency-stop/off pushbutton, D=60mm, pull release M22-PV60P Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton, RMQ-Titan, Palm-tree shape, 60 mm, Non-illuminated, Pull-to-release function, Red, yellow Emergency stop/emergency switching off pushbutton, Product range: RMQ-Titan, Single unit, Design: Palm-tree shape, Diameter: 60 mm, Illumination: Non-illuminated, Pull-to-release function, Description: Tamper-proof according to ISO 13850/EN 418, Color Mushroom head: Red, Color Base: yellow, Degree of Protection: IP66, IP69K, Connection to SmartWire-DT: no, Instructions: Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Pull-release emergency-stop pushbuttons allow machine operators to halt critical processes instantly by striking a prominent actuator head. These maintained units require a deliberate pulling action to reset, preventing accidental restarting of hazardous equipment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Red
  • Construction type lens (EF006253): Round
  • Diameter cap (EF001423): 60 mm
  • Hole diameter (EF000079): 22.5 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Degree of protection (IP) (EF005474): IP66
  • Degree of protection (NEMA) (EF011959): 4X
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): No
  • With lighting (EF003829): No
  • Supply voltage lamp (EF006522): 0 V
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): No
  • Suitable for emergency stop (EF001433): Yes

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton
Catalog Number
152864
Model Code
M22-PV60P
EAN
4015081496426
Product Length/Depth
67 mm
Product Height
60 mm
Product Width
60 mm
Product Weight
0.051 kg
Certifications
IEC/EN 60947
VDE 0660
DNV
GL
LR

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
