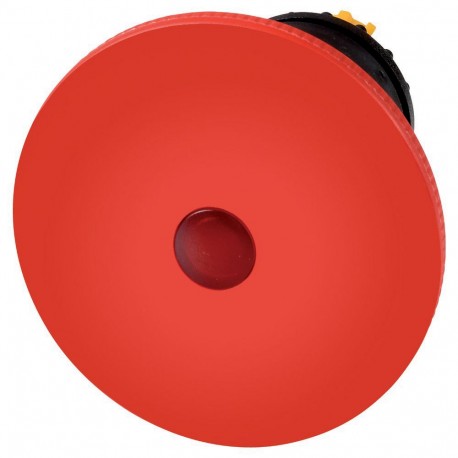

EATON - MOELLER M22-PVL60P M22-PVL60P 152861 Y7-152861 EATON ELECTRIC Emergency-stop/off pushbutton, D 60mm, illuminated, pull release View larger
Images are for illustrative purposes only. Please refer to data sheet for details

M22-PVL60P 152861 Y7-152861 EATON ELECTRIC Emergency-stop/off pushbutton, D 60mm, illuminated, pull release

M22-PVL60P

152861

Y7-152861

EATON - MOELLER

1 Pcs.

Emergency-stop/off pushbutton, D=60mm, illuminated, pull release M22-PVL60P Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton, RMQ-Titan, Palm-tree shape, 60 mm, Illuminated with LED element, Pull-to-release function, Red, yellow Emergency stop/emergency switching off pushbutton, Product range: RMQ-Titan, Single unit, Design: Palm-tree shape, Diameter: 60 mm, Illumination: Illuminated with LED element, Pull-to-release function, Description: Tamper-proof according to ISO 13850/EN 418, Color Mushroom head: Red, Color Base: yellow, Degree of Protection: IP66, IP69K, Connection to SmartWire-DT: no, Instructions: Max. number of contacts: four M22-(C)K01, …10 or two M22-(C)K02, …20, …11, Standards: IEC/EN 60947, VDE 0660

Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An M22-PVL60P Eaton Moeller emergency-stop/off pushbutton provides a visible safety control interface for industrial machinery, manufacturing lines, and process automation systems. Safety technicians install these illuminated actuators to give operators a clear physical means of cutting power during critical faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button: Red
  • Construction type lens: Round
  • Diameter cap: 60 mm
  • Hole diameter: 22.5 mm
  • Width opening: 0 mm
  • Height opening: 0 mm
  • Degree of protection (IP): IP66
  • Degree of protection (NEMA): 4X
  • Type of button: High
  • Suitable for lighting: Yes
  • With lighting: No
  • Supply voltage lamp: 0 V
  • Switching function latching: Yes
  • Spring-return: No
  • With front ring: No
  • Suitable for emergency stop: Yes

More info

▲

General specifications

Product Name
Eaton Moeller® series M22 Emergency stop/emergency switching off pushbutton
Catalog Number
152861
Model Code
M22-PVL60P
EAN
4015081496396
Product Length/Depth
67 mm
Product Height
60 mm
Product Width
60 mm
Product Weight
0.051 kg
Certifications
VDE 0660
IEC/EN 60947
DNV
GL
LR
Catalog Notes
Max. Configuration: 4 x M22-(C)K01, …10 or 2 x M22-(C)K02, …20, …11 and 1 x M22-(F)LED... - When using M22-PVL… with 1 x M22-K01SMC10 (single channel), article M22-XSMC (order no.: 173030) is required. Order this item separately.
