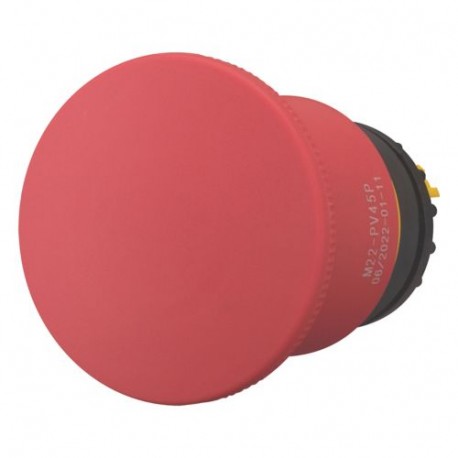

M22-PV45P 152862 Y7-152862 EATON ELECTRIC Emergency-stop/off pushbutton, D 45mm, pull release
M22-PV45P
152862
Y7-152862
EATON - MOELLER
1 Pcs.
Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Eaton Moeller M22-PV45P emergency-stop pushbutton provides a manual safety interruption mechanism utilized on heavy machinery and automated production lines to halt operations immediately during emergencies. Such operators are built for secure installation within control panel cutouts to maintain plant safety standards. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Construction type lens (EF006253): Round
- Diameter cap (EF001423): 45 mm
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 4X
- Type of button (EF001546): High
- Suitable for lighting (EF001142): No
- With lighting (EF003829): No
- Supply voltage lamp (EF006522): 0 V
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): No
- Suitable for emergency stop (EF001433): Yes
More info
▲General specifications
IEC/EN 60947
DNV
GL
LR
Features & Functions
Classical
General
IP66
Ambient conditions, mechanical
Mechanical, According to IEC/EN 60068-2-27
Climatic environmental conditions
Damp heat, cyclic, to IEC 60068-2-30
Communication
Actuator
Pull-to-release
