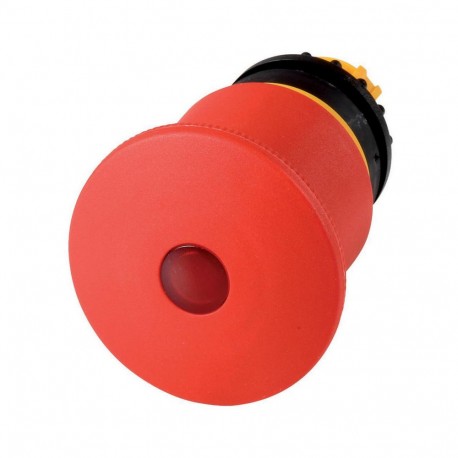

M22-PVL45P 152860 Y7-152860 EATON ELECTRIC Emergency-stop/off pushbutton, D 45mm, illuminated, pull release
M22-PVL45P
152860
Y7-152860
EATON - MOELLER
1 Pcs.
Automation > Front element for mushroom push-button
Auxiliary Control and Signalling Elements
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Eaton Moeller M22-PVL45P is an illuminated emergency-stop pushbutton designed to provide immediate visual identification and circuit interruption on control panels. Operators rely on the large red mushroom head and pull-release mechanism for rapid safety responses.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Colour button (EF000190): Red
- Construction type lens (EF006253): Round
- Diameter cap (EF001423): 45 mm
- Hole diameter (EF000079): 22.5 mm
- Width opening (EF004565): 0 mm
- Height opening (EF004778): 0 mm
- Degree of protection (IP) (EF005474): IP66
- Degree of protection (NEMA) (EF011959): 4X
- Type of button (EF001546): High
- Suitable for lighting (EF001142): Yes
- With lighting (EF003829): No
- Supply voltage lamp (EF006522): 0 V
- Switching function latching (EF007447): Yes
- Spring-return (EF001407): No
- With front ring (EF006014): No
- Suitable for emergency stop (EF001433): Yes
More info
▲General specifications
VDE 0660
DNV
GL
LR
Features & Functions
Classical
General
NEMA 4X
Emergency stop
Ambient conditions, mechanical
50 g, Mechanical, According to IEC/EN 60068-2-27, Sinusoidal shock 11 ms
Climatic environmental conditions
Damp heat, constant, to IEC 60068-2-78
Communication
Actuator
Switching function latching
