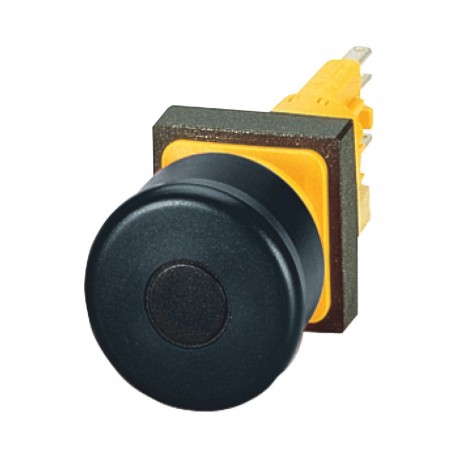

Q25LPV-S 257064 EATON ELECTRIC Emergency-stop/emergency stop illuminated pushbutton, black, maintained

Q25LPV-S

257064

EATON - MOELLER

1 Pcs.

Emergency-stop/emergency stop illuminated pushbutton, black, maintained Q25LPV-S HALT/STOP-Button, Product range: RMQ16, Single unit, Design: Mushroom-shaped, Diameter: 28 mm, Illumination: Illuminated, Pull-to-release function, Description: Tamper-proof according to ISO 13850, EN 418, Pushbutton remains in pushed position, Color Mushroom head: Black, Degree of Protection: IP65, Connection to SmartWire-DT: no, Front dimensions: 25 × 25 mm, Information about equipment supplied: with built-in multiple LED, 24 V DC, Ie = 15 mA, Positive pole at X1, No bulb replacement required.

Automation > Front element for push button
Auxiliary Control and Signalling Elements

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured by Eaton Moeller, the Q25LPV-S emergency-stop and illuminated pushbutton serves as a critical safety device designed to halt machinery during hazardous events. Industrial installations depend on such latching control units to protect personnel and equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour button (EF000190): Black
  • Number of command positions (EF001372): 1
  • Construction type lens (EF006253): Rectangular
  • Hole diameter (EF000079): 16 mm
  • Width opening (EF004565): 0 mm
  • Height opening (EF004778): 0 mm
  • Type of button (EF001546): High
  • Suitable for lighting (EF001142): Yes
  • With protective cover (EF005500): No
  • Labelled (EF001537): No
  • Switching function latching (EF007447): Yes
  • Spring-return (EF001407): No
  • With front ring (EF006014): Yes
  • Material front ring (EF005972): Plastic
  • Colour front ring (EF002429): Black
  • Degree of protection (IP), front side (EF003118): IP65

More info

▲
Emergency-stop/emergency stop illuminated pushbutton, black, maintained
HALT/STOP-Button, Product range: RMQ16, Single unit, Design: Mushroom-shaped, Diameter: 28 mm, Illumination: Illuminated, Pull-to-release function, Description: Tamper-proof according to ISO 13850, EN 418, Pushbutton remains in pushed position, Colour Mushroom head: Black, Degree of Protection: IP65, Connection to SmartWire-DT: no, Front dimensions: 25 × 25 mm, Information about equipment supplied: with built-in multiple LED, 24 V DC, Ie = 15 mA, Positive pole at X1, No bulb replacement required.

Delivery program

Product range
RMQ16
Basic function
STOP pushbuttons
Emergency stop pushbuttons
Mounting hole diameter [⌀]
16 mm
Single unit/Complete unit
Single unit
Design
Mushroom-shaped
Diameter [⌀]
28 mm
Illumination
Illuminated
Approval
Pull-to-release function
Description
Tamper-proof according to ISO 13850, EN 418
Pushbutton remains in pushed position
Colour
Mushroom head
Black
Degree of Protection
IP65
Connection to SmartWire-DT
no
Information about equipment supplied
with built-in multiple LED, 24 V DC, Ie = 15 mA
Positive pole at X1
No bulb replacement required.

Design verification as per IEC/EN 61439

Technical data for design verification
Rated operational current for specified heat dissipation [In]
0 A
Heat dissipation per pole, current-dependent [Pvid]
0 W
Equipment heat dissipation, current-dependent [Pvid]
0 W
Static heat dissipation, non-current-dependent [Pvs]
0.36 W
Heat dissipation capacity [Pdiss]
0 W
Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+60 °C
IEC/EN 61439 design verification
10.2 Strength of materials and parts10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.3.3 Verification of resistance of insulating materials to abnormal heat and fire due to internal electric effects
Meets the product standard's requirements.
10.2 Strength of materials and parts10.2.4 Resistance to ultra-violet (UV) radiation
Please enquire
10.2 Strength of materials and parts10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2 Strength of materials and parts10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of ASSEMBLIES
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9 Insulation properties10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9 Insulation properties10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9 Insulation properties10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Front element for push button (EC000221)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Command and alarm device / Front element for push-button actuators ([email protected] [AKF028014])
Colour button
Black
Number of command positions
1
Construction type lens
Rectangular
Hole diameter
16 mm
Width opening
0 mm
Height opening
0 mm
Type of button
High
Suitable for illumination
Yes
With protective cover
No
Labelled
No
Switching function latching
Yes
Spring-return
No
With front ring
Yes
Material front ring
Plastic
Colour front ring
Black
Degree of protection (IP), front side
IP65
Degree of protection (NEMA), front side
1

Approvals

Product Standards
IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CE marking
UL File No.
E29184
UL Category Control No.
NKCR
CSA File No.
46552
CSA Class No.
3211-03
North America Certification
UL listed, CSA certified
Degree of Protection
UL/CSA Type 1

Dimensions

Actuating and indicator elements
Square style

Product Datasheet
