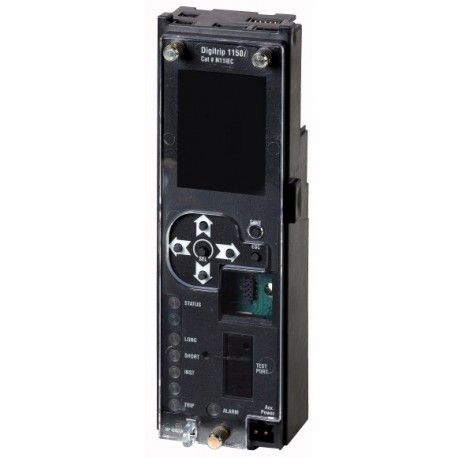

EATON - MOELLER +IZMX-DTP-M +IZMX-DTP-M 155574 IZMX-DTP-M EATON ELECTRIC Electronic bypass, 1150i ARMS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

+IZMX-DTP-M 155574 IZMX-DTP-M EATON ELECTRIC Electronic bypass, 1150i ARMS

+IZMX-DTP-M

155574

IZMX-DTP-M

EATON - MOELLER

1 Pcs.

Electronic bypass, 1150i ARMS Control unit for power measurement, with ARMS

Automation > Accessories/spare parts for low-voltage switch technology

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The +IZMX-DTP-M 155574 IZMX-DTP-M EATON ELECTRIC Electronic bypass by Eaton Moeller is an advanced control component integrated into high-capacity circuit protection systems to manage specialized trip unit functionalities. Electronic bypass modules help regulate diagnostic pathways and operational parameters within complex switchgear assemblies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Accessory (EF013236): No
  • Spare part (EF013237): No

More info

▲
Electronic bypass, 1150i ARMS
Control unit for power measurement, with ARMS

Delivery program

Product range
Accessories
Accessories
Options / accessories trip blocks
Accessories
Add-on function for control unit power monitoring
External power supply is not required for all listed functions.
U Type Universal protection and LCD color display
Advanced metering and protective features
ARMS
For use with
IZMX…
Notes

IZMX-DTP-PTM external voltage measuring module required

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Accessories for low-voltage switch technology (EC002498)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Component for low-voltage switch technology (accessories) ([email protected] [AKN570013])
Type of accessory
Other
