> EATON - MOELLER > Single-phase UPS up to 11kVA > EFLX8D

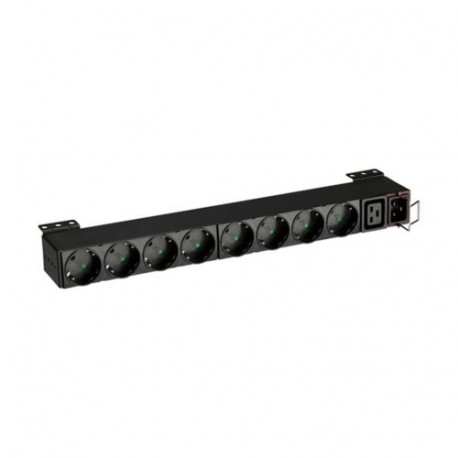

EATON - MOELLER EATON FLEXPDU 8 DIN EATON FLEXPDU 8 DIN EFLX8D EATON ELECTRIC Eaton FlexPDU, 1U, C20 input, 4 kW, 16A, 200-240V, Outlets: (1) C1.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EATON FLEXPDU 8 DIN EFLX8D EATON ELECTRIC Eaton FlexPDU, 1U, C20 input, 4 kW, 16A, 200-240V, Outlets: (1) C1..

EATON FLEXPDU 8 DIN

EFLX8D

EFLX8D

EATON - MOELLER

1 Pcs.

Eaton FlexPDU, 1U, C20 input, 4 kW, 16A, 200-240V, Outlets: (1) C19/(8) PC/SHUKO, DIN EATON FLEXPDU 8 DIN

Automation > Power distribution unit (PDU)
Single-phase UPS up to 11kVA

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Flex Rack PDU
Catalog Number
EFLX8D
Model Code
EATON FLEXPDU 8 DIN
EAN
3553340684258
Product Length/Depth
80 mm
Product Height
44 mm
Product Width
483 mm
Product Weight
1.6 kg
Compliances
CE Marked
Certifications
CE

Additional specifications

Form factor
1U
Outlet control
No
Package contents
Operating Temperature
0° to 60°C (32° to 140°F)

Physical

Mounting direction
Horizontal
Color
Black

Electrical input

Input connection
C20
Wattage
3.84 kW max
Amperage Rating
16A
Input voltage
200-240V
Frequency rating
50/60 Hz
Cord length
2m
Phase
Single-phase

Communications

Ethernet interface
No
Mass configuration
No
SNMP
No
Serial interface
No

Additional specifications

Electrical connection
Socket outlet
Mounting Dimension (metrical)
44
Over voltage category
2
Evaluation
Other
Mounting dimension (standardized)
482.6 mm (19 inch)
Switchable
No

ETIM for EFLX8D Domestic wiring accessories and controls (EC002762)
Feature Name Feature Value
Mounting dimension (standardised) (EF000397) 482.6 mm (19 inch)
Mounting size (EF020751) 44 mm
Mounting direction (EF003824) Horizontal
Electrical connection (EF003701) Socket outlet
Type of electric connection (EF003961) C20
Number of phases (EF000351) 1
Cable length (EF000536) 2 m
Number of socket outlets with protective contact CEE 7/3 (type F) (EF000411) 8
Number of socket outlets with earth pin (EF006578) 0
Number of C13 socket outlets (EF008511) 0
Number of C19 socket outlets (EF008513) 1
Number of C20 socket outlets (EF008512) 0
Number of socket outlets British Standard BS 1363 (EF012037) 0
Number of socket outlets Swiss standard type 13 (EF011975) 0
Number of socket outlets Swiss standard type 15 (EF011977) 0
Number of socket outlets Swiss standard type 23 (EF011978) 0
Number of socket outlets Swiss standard type 25 (EF011979) 0
Number of other socket outlets (EF006579) 8
Number of height units (EF003561) 1
Length (EF001438) 80 mm
Width (EF000008) 483 mm
Height (EF000040) 44 mm
Depth (EF000049) 80 mm
Supply voltage (EF000104) 230 V
With surge protection module (EF017068) No
Over voltage category (EF006785) 2
Mains filter (EF000947) No
Switchable (EF008037) No
With meter (EF016044) No
Control function (EF002685) No
SNMP (EF005284) No
With display (EF000458) No
Evaluation (EF007670) Other
With LED indication (EF005950) No
With fuse (EF006693) No
Ampere meter (EF006555) No
Temperature measurement (EF006229) No
With mounting material (EF006009) Yes
Colour (EF000007) Black
