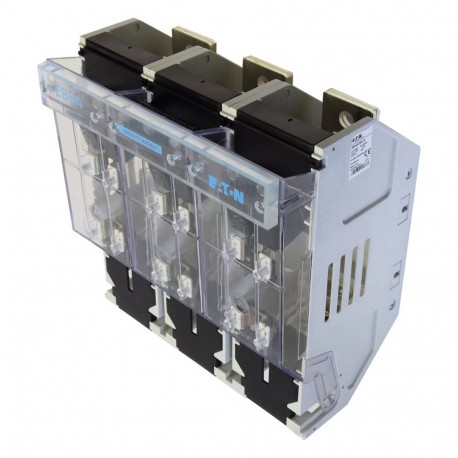

EBH4O3TM2-12 EATON ELECTRIC disconnector, BT, 1250 a, AC 500 V, NH4a, AC22B, 3P, IEC

EBH4O3TM2-12

EBH4O3TM212

EATON - MOELLER

1 Pcs.

SIZE 4A 1250A HOR FSD,M SCREW 3 POLE SI Eaton Bussmann series low voltage NH fuse base, Switch disconnector, low voltage, 1250 A, AC 500 V, NH4a, AC22B, 3P, IEC, plate mounting, 3-phase simultaneous switching Fuse accessory, Switch disconnector, low voltage, 1250 A, AC 500 V, NH4a, AC22B, 3P, IEC, Horizontal, mounting plate type, 3-phase simultaneous switching, M12 screws, NH4a fuse-links, IEC 60947-1, IEC 60947-3, IP20

Connectors > Fuse switch disconnector
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An EBH4O3TM2-12 EATON ELECTRIC disconnector is a high-capacity NH4a fuse switch designed for heavy-duty industrial power distribution and heavy motor loads. Electrical contractors utilize these robust devices within main switchboards to manage high currents and safely isolate sections of a plant.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as main switch (EF006981): No
  • Version as safety switch (EF006985): No
  • Max. rated operation voltage Ue AC (EF007355): 690 V
  • Rated permanent current Iu (EF001389): 1250 A
  • Rated operation power at AC-23, 400 V (EF007027): 0.5 kW
  • Conditioned rated short-circuit current Iq (EF001444): 0.05 kA
  • Rated short-time withstand current lcw (EF007050): 50 kA
  • Suitable for fuses (EF006692): NH4a
  • Number of poles (EF001391): 3
  • With error protection (EF007384): No
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Equipped with connectors (EF011696): No
  • Suitable for floor mounting (EF007243): No
  • Suitable for front mounting (EF007246): Yes
  • Suitable for busbar mounting (EF007259): No
  • Type of control element (EF006976): Cover grip

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH fuse base
Catalog Number
EBH4O3TM2-12
EAN
5027590409414
Product Length/Depth
140 mm
Product Height
324 mm
Product Width
250 mm
Product Weight
12890 g
Compliances
CE
Certifications
IEC/EN 60947-1
IEC 60947-3

Electrical rating

Amperage Rating
1250 A
Voltage rating
690

Product specifications

Number of poles
Three-pole

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
