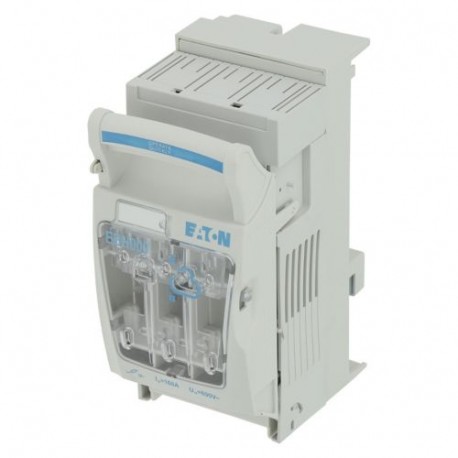

EATON - MOELLER EBH00013TTM8 EBH00013TTM8 EATON ELECTRIC Switch disconnector, low voltage, 160 A, AC 690 V, NH000, AC21B, 3P, IEC, 60mm b.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EBH00013TTM8 EATON ELECTRIC Switch disconnector, low voltage, 160 A, AC 690 V, NH000, AC21B, 3P, IEC, 60mm b..

EBH00013TTM8

00013

EATON - MOELLER

1 Pcs.

SIZE 000 HOR FSD - 60MM BUS :M8 SCREWS Eaton Bussmann series low voltage NH fuse base, Switch disconnector, low voltage, 160 A, AC 690 V, NH000, AC21B, 3P, IEC, 60mm busbar, cable terminal – top, for connection of conductors with lug terminals - M8 screws

Connectors > Fuse switch disconnector
Bussmann Series Low Voltage fuses and accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Bussmann series low voltage NH fuse base
Catalog Number
EBH00013TTM8
EAN
5027590334914
Product Length/Depth
195 mm
Product Height
145 mm
Product Width
100 mm
Product Weight
921 g
Compliances
CE
Certifications
IEC/EN 60947-1
IEC 60947-3

Electrical rating

Amperage Rating
160 A
Voltage rating
690

Product specifications

Number of poles
Three-pole
Mounting method
DIN rail
60 mm busbar mounting
