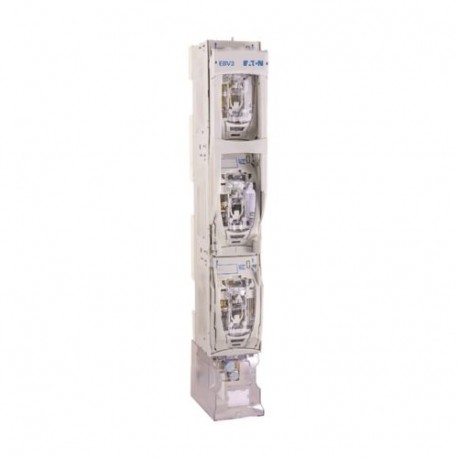

EBF00330S8 EATON ELECTRIC Fuse rail, low voltage, 160 A, AC 690 V, NH00, 3P, IEC, 100mm busbar, bridge termi..
EBF00330S8
00330
EATON - MOELLER
1 Pcs.
SIZE00>185MM BRIDGE TERMINALS WITH BRIDG
Eaton Bussmann series low voltage NH fuse base, Fuse rail, low voltage, 160 A, AC 690 V, NH00, 3P, IEC, 185 mm busbar, bridge terminals with bridge clamps (S) 4 - 70 mm2, screw terminals with M8 screws
Fuse accessory, Fuse rail, low voltage, 160 A, AC 690 V, NH00, 3P, IEC, vertical, 185 mm busbar mounting, S-bridge clamps, M8 screws, NH00 fuse-links, IEC 60269-1, IP00
Automation > In-line fuse base
Bussmann Series Low Voltage fuses and accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General specifications
Product Name
Eaton Bussmann series low voltage NH fuse base
Catalog Number
EBF00330S8
EAN
5027590540131
Product Length/Depth
135 mm
Product Height
715 mm
Product Width
55 mm
Product Weight
1796 g
Compliances
CE
Certifications
IEC 60269-1
IEC 60269-2
IEC 60269-2
Electrical rating
Amperage Rating
160 A
Voltage rating
690
Product specifications
Number of poles
Three-pole
Mounting method
Busbar
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Fuse base |
| Double interrupting (EF007103) | No |
| Rated permanent current Iu (EF001389) | 160 A |
| Distance between rail centre, 40 mm (EF001431) | No |
| Distance between rail centre, 50 mm (EF001430) | No |
| Distance between rail centre, 60 mm (EF001432) | No |
| Distance between rail centre, 100 mm (EF006048) | No |
| Distance between rail centre, 185 mm (EF006049) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Conditioned rated short-circuit current Iq (EF001444) | 0.1 kA |
| Type of electrical connection of main circuit (EF006819) | Other |
| Number of poles (EF001391) | 3 |
| Construction size fuse insert (EF001452) | NH00 |
| Release indication (EF011943) | None |
