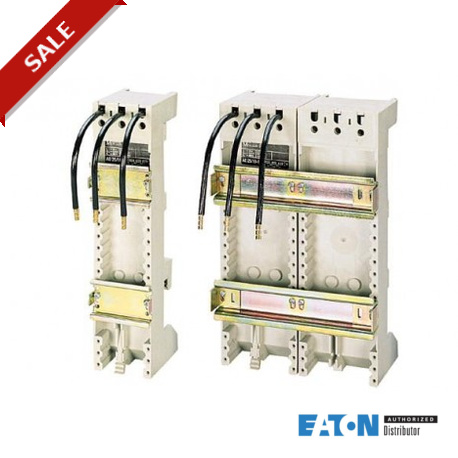

EATON - MOELLER SP-PKZ0 SP-PKZ0 202354 EATON ELECTRIC XTPAXSP busbar adapter View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SP-PKZ0 202354 EATON ELECTRIC XTPAXSP busbar adapter

SP-PKZ0

202354

EATON - MOELLER

1 Pcs.

XTPAXSP busbar adapter 3-pole busbar device adapter for mounting on copper flat busbars with 40 mm and 50 mm interval between busbar centers

Automation > Busbar adapter
Circuit Breakers PKZ

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller SP-PKZ0 busbar adapter acts as an efficient mechanical and electrical interface that connects motor starter assemblies directly to distribution busbars without separate cabling. This facilitates rapid assembly, structural stability, and organized wiring inside industrial motor control centers.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting rail armament (EF003700): 1 mounting rail
  • Type of electric connection (EF003961): Round conductor
  • Rated current In (EF008250): 25 A
  • Min. busbar thickness (EF006536): 5 mm
  • Max. busbar thickness (EF003702): 5 mm
  • Width of the adapter (EF003703): 54 mm
  • Rail width (EF003704): 12 mm
  • Busbar distance (EF002638): 50 mm

More info

▲
Technical data ETIM 6.0
Low-voltage industrial components (EG000017) / Busbar adapter (EC001531)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Busbar trunking system (LV circuitry) / Busbar adapter (low-voltage switching technology) ([email protected] [ACN951008])
Mounting rail armament
1 mounting rail
Type of electrical connection
Round conductor
Rated current In
A 25
Min. busbar thickness
mm 5
Max. busbar thickness
mm 5
Width of the adapter
mm 54
Rail width
mm 12
Busbar distance
mm 50

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
