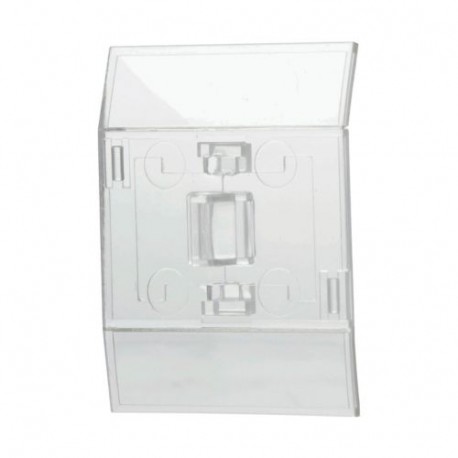

EATON - MOELLER DILM32-XAB DILM32-XAB 129538 Y7-129538 EATON ELECTRIC Industrial Automation Bussines and Industrial Control Devices IEC.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DILM32-XAB 129538 Y7-129538 EATON ELECTRIC Industrial Automation Bussines and Industrial Control Devices IEC..

DILM32-XAB

129538

Y7-129538

EATON - MOELLER

10 Pcs.

Industrial Automation Bussines and Industrial Control Devices IEC Starters and Contactors DILM32-XAB Eaton Moeller® series DILM Contactor cover Prevent mechanical actuation using protective shroud.

Automation > Accessories/spare parts for low-voltage switch technology
Contactors up to 170A

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General specifications

Product Name
Eaton Moeller® series DILM contactor cover
Catalog Number
129538
Model Code
DILM32-XAB
EAN
4015081269099
Product Length/Depth
10 mm
Product Height
47 mm
Product Width
36 mm
Product Weight
0.002 kg
Certifications
UL/CSA certification not required
Catalog Notes
Cannot be combined with additional surface mounting accessories.

Features & Functions

Functions
For preventing manual actuation.

General

Accessory/spare part type
Cover
Product category
Accessories

Design verification

Equipment heat dissipation, current-dependent Pvid
0 W
Heat dissipation capacity Pdiss
0 W
Rated operational current for specified heat dissipation (In)
0 A
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
Not applicable.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

ETIM for 129538 Low-voltage industrial controls and switchgear (EC002498)
Feature Name Feature Value
Type of accessory/spare part (EF000215) Cover
Accessory (EF013236) Yes
Spare part (EF013237) No
