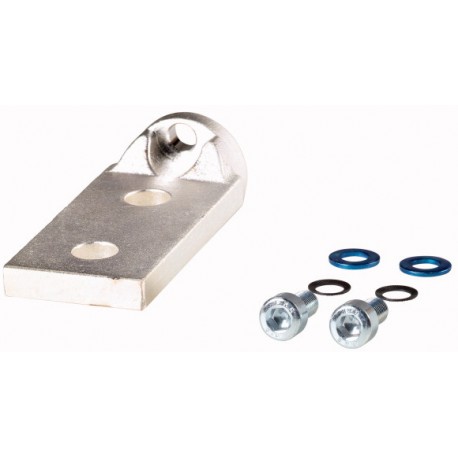

IZMX-THVL163 124233 EATON ELECTRIC Connection 3p horizontal/vertical, long

IZMX-THVL163

124233

EATON - MOELLER

1 Pcs.

Connection 3p horizontal/vertical, long Main terminal component adapter, each set contains the connections for top and bottom, 3 pole = 6 pieces

Automation > Connection vane/phase spreader
Circuit Breakers IZM

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller IZMX-THVL163 Connection 3p horizontal/vertical, long is a specialized terminal connection component used to interface heavy-duty circuit protection equipment with primary busbar infrastructure. These transition hardware pieces are commonly deployed in industrial switchboards to enable reliable horizontal or vertical cable routing for three-pole distribution frameworks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for number of poles (EF001589): 3

More info

▲
Connection 3p horizontal/vertical, long
Main terminal component adapter, each set contains the connections for top and bottom, 3 pole = 6 pieces
[

Delivery program

Product range
Accessories
Accessories
Main terminal kits
Accessories
Horizontal and vertical connections, long
Main terminals are not supplied as standard with the basic devices and cassettes.
Each set contains the connections for top and bottom. 3 pole = 6 off; 4 pole = 8 off
Rated current [In]
800 - 1600 A
Pole
3
For use with
IZMX16…
INX16…
,

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C
,

Technical data ETIM 7.0

Low-voltage industrial components (EG000017) / Connection vane/phase spreader (EC002019)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Component for low-voltage switching technology / Connection vane/phase spreader ([email protected] [ACN990012])
Suitable for number of poles
3
]

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
