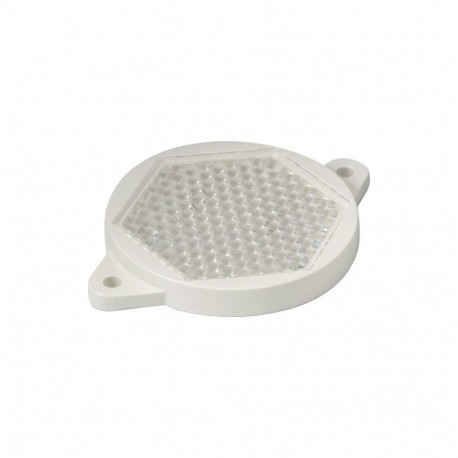

EATON - MOELLER E65KR55 E65KR55 135758 Y7-135758 EATON ELECTRIC Retro-reflector, 51mm, D 63mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E65KR55 135758 Y7-135758 EATON ELECTRIC Retro-reflector, 51mm, D 63mm

E65KR55

135758

Y7-135758

EATON - MOELLER

1 Pcs.

Retro-reflector, 51mm, D=63mm E65KR55 Eaton Moeller® series E65 Retro-reflector, 51mm, D=63mm Accessories for optical sensors E65-SM series

Automation > Reflector for photoelectric sensor
Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Eaton Moeller E65KR55 retro-reflector is an optical accessory utilized in industrial automation systems to bounce light beams back toward photoelectric sensors in retro-reflective setups. These reflectors enable reliable object detection, position tracking, and presence monitoring across automated production lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape (EF000051): Round
  • Height (EF000040): 8.5 mm
  • Width (EF000008): 86 mm
  • Outer diameter (EF000015): 63 mm
  • Number of mounting holes (EF001719): 2
  • Self adhesive mounting (EF000097): No
  • With stud (EF011963): No

More info

▲

General specifications

Product Name
Eaton Moeller® series E65 Accessory Retro-reflector
Catalog Number
135758
Model Code
E65KR55
EAN
4015081325511
Product Length/Depth
63 mm
Product Height
8.5 mm
Product Width
86 mm
Product Weight
0.01 kg
Certifications
None

Product specifications

Type
Retro-reflector
Fitted with:
Polarization filter
Ambient operating temperature - max
55 °C
Ambient operating temperature - min
-25 °C
Number of mounting holes
2
Outside diameter
63 mm
Product category
Accessories
Shape
Round
Material
Insulated material

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
