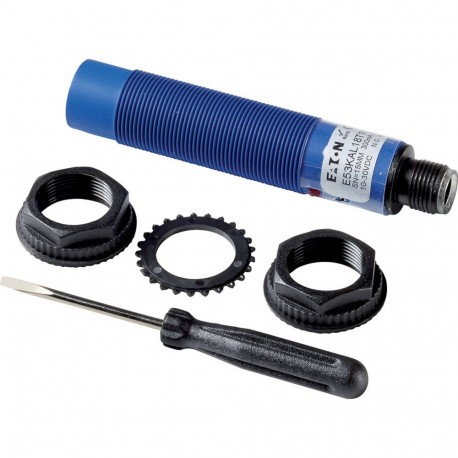

Proximity switch, capacitive, Sn=15mm, 1 N/C, 3L, NPN, M18, insulated material, M12 E53KBL18T110ED Proximity switch, Product range: E53 Capacitive Series, Capacitive sensors, Connection: 3-wire, Rated switching distance: Sn= 15 mm, Design (outer dimensions): M18 x 1 mm, Rated operational voltage: Ue= 10 - 30 V DC, Type of mounting: Non-flush, Switching type: NPN, For connection of:: Plug-in connection M12 x 1, Contacts N/C = Normally closed: 1 NC, Material: Insulated material, Degree of Protection: IP65

Automation > Capacitive proximity switch
Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Eaton Moeller proximity switch is an electronic device utilized to sense the presence of objects without mechanical contact. These units are commonly deployed in packaging, material handling, and assembly machinery to control cycles and track parts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width sensor (EF007094): 0 mm
  • Height of sensor (EF007283): 0 mm
  • Length of sensor (EF007334): 80 mm
  • Diameter sensor (EF007111): 18 mm
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Switching distance (EF003647): 15 mm
  • Suitable for safety functions (EF001597): No
  • Type of switch function (EF003963): Breaker contact
  • Type of switching output (EF003962): NPN
  • Type of electric connection (EF003961): Plug-in connection
  • Number of protected semiconductor outputs (EF003951): 0
  • Number of protected contact energized outputs (EF003952): 0
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Cascadable (EF000507): No
  • Max. output current at protected output (EF004035): 0 mA
  • Supply voltage (EF004127): 10 V

More info

▲
Proximity switch, capacitive, Sn=15mm, 1 N/C, 3L, NPN, M18, insulated material, M12
Proximity switch, Product range: E53 Capacitive Series, Capacitive sensors, Connection: 3-wire, Rated switching distance: Sn= 15 mm, Design (outer dimensions): M18 x 1 mm, Rated operational voltage: Ue= 10 - 30 V DC, Type of mounting: Non-flush, Switching type: NPN, For connection of:: Plug-in connection M12 x 1, Contacts N/C = Normally closed: 1 NC, Material: Insulated material, Degree of Protection: IP65

Delivery program

Basic function
Capacitive sensors
Product range
E53 Capacitive Series
Connection
3-wire
Design (outer dimensions)
M18 x 1 mm
Rated operational voltage [Ue]
10 - 30 V DC
Rated switching distance [Sn]
15 mm
Type of mounting
Non-flush
Switching type
NPN
For connection of:
Plug-in connection M12 x 1
Contacts
N/C = Normally closed
1 NC
Material
Insulated material
Degree of Protection
IP65

Technical data

General
Standards
IEC/EN 60947-5-2-EMC
Ambient temperature
-25 - +70
Mechanical shock resistance
30
Shock duration 11 ms g
Degree of Protection
IP65
Characteristics
Rated switching distanceRated switching distance [Sn]
15 mm
Repetition accuracy of Sn
10 %
Temperature drift of Sn
10 %
Switching hysteresis of Sn
20 %
Rated operational voltage [Ue]
10 - 30 V DC
Residual ripple of Ue
10 %
Maximum load current [Ie]
< 300 mA
Switching Frequency
250 Hz
Switching state display
Red LED
Connection
3-wire
ContactsN/C = Normally closed
1 NC
StyleDesign (outer dimensions)
M18 x 1 mm
For connection of:
Plug-in connection M12 x 1
Material
Insulated material

Design verification as per IEC/EN 61439

Operating ambient temperature min.
-25 °C
Operating ambient temperature max.
+70 °C

Technical data ETIM 7.0

Sensors (EG000026) / Capacitive proximity switch (EC002715)
Electric engineering, automation, process control engineering / Binary sensor technology, safety-related sensor technology / Proximity switch / Capacitive proximity switch ([email protected] [AGZ377015])
Width sensor
0 mm
Height of sensor
0 mm
Length of sensor
80 mm
Diameter sensor
18 mm
Mechanical mounting condition for sensor
Not flat
Switching distance
15 mm
Suitable for safety functions
No
Type of switch function
Breaker contact
Type of switching output
NPN
Type of electric connection
Connector M12
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of actuation
Other
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cylinder, screw-thread
Coating housing
Other
Cascadable
No
Category according to EN 954-1
B
SIL according to IEC 61508
None
Performance level acc. EN ISO 13849-1
None
Max. output current at protected output
0 mA
Supply voltage
10 - 30 V
Rated control supply voltage Us at AC 50HZ
0 - 0 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
10 - 30 V
Voltage type
DC
Switching frequency
250 Hz
With monitoring function downstream switching devices
No
With status indication
Yes
Material housing
Plastic
Compression-resistant
No
Explosion safety category for gas
None
Explosion safety category for dust
None

Approvals

Product Standards
CE marking
Max. Voltage Rating
250 V AC, 30 V DC
Degree of Protection
IEC: IP65; UL/CSA: NEMA 4, 12, 13

Dimensions

① Sensitivity setting

Product Datasheet
