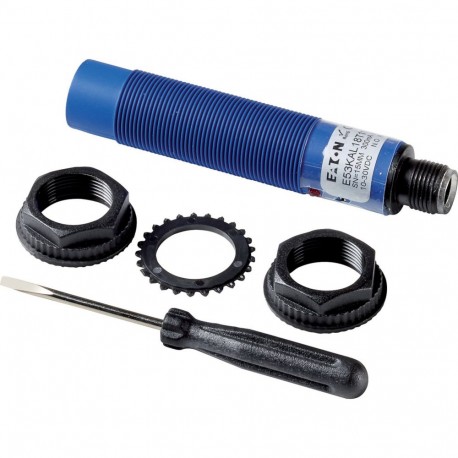

E53KBL18A2EA 134793 Y7-134793 EATON ELECTRIC Proximity switch, capacitive, Sn 15mm, 1 N/C, 2L, 20-250VAC, M1..
E53KBL18A2EA
134793
Y7-134793
EATON - MOELLER
1 Pcs.
Automation > Capacitive proximity switch
Sensors
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Capacitive proximity switch model E53KBL18A2EA from Eaton Moeller provides reliable object and level detection for diverse automated machinery. These electronic components detect metallic and non-metallic targets alike, helping control sequences, verify material flow, and limit mechanical travel ranges in production environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width sensor (EF007094): 0 mm
- Height of sensor (EF007283): 0 mm
- Length of sensor (EF007334): 80 mm
- Diameter sensor (EF007111): 18 mm
- Mechanical mounting condition for sensor (EF004041): Not flat
- Switching distance (EF003647): 15 mm
- Suitable for safety functions (EF001597): No
- Type of switch function (EF003963): Breaker contact
- Type of switching output (EF003962): 2-wire
- Type of electric connection (EF003961): Plug-in connection
- Number of protected semiconductor outputs (EF003951): 0
- Number of protected contact energized outputs (EF003952): 0
- Construction type housing (EF004008): Cylinder, screw-thread
- Cascadable (EF000507): No
- Max. output current at protected output (EF004035): 0 mA
- Supply voltage (EF004127): 20 V
More info
▲General specifications
IEC/EN 60947-5-2
Product specifications
Plug-in connection M12 x 1
NEMA 12
NEMA 13
IP65
50 Hz, Input, min. Range
