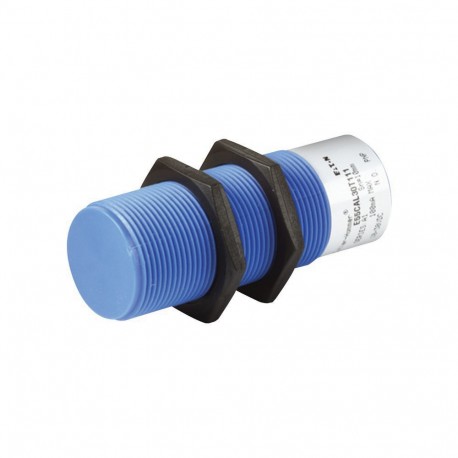

E53KAL30T110SD 134776 Y7-134776 EATON ELECTRIC Proximity switch, capacitive, Sn 20mm, 1N/O, 3L, NPN, 10-30VD..

E53KAL30T110SD

134776

Y7-134776

EATON - MOELLER

1 Pcs.

Proximity switch, capacitive, Sn=20mm, 1N/O, 3L, NPN, 10-30VDC, M30, insulated material, M12 E53KAL30T110SD Proximity switch, Product range: E53 Capacitive Series, Capacitive sensors, Connection: 3-wire, Rated switching distance: Sn= 20 mm, Design (outer dimensions): M30 x 1.5 mm, Rated operational voltage: Ue= 10 - 30 V DC, Type of mounting: Flush, Switching type: NPN, For connection of:: Plug-in connection M12 x 1, Contacts N/O = Normally open: 1 N/O, Material: Insulated material, Degree of Protection: IP65

Automation > Capacitive proximity switch
Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Eaton Moeller capacitive proximity switch (E53KAL30T110SD) provides reliable object and level detection in diverse factory automation environments. Technicians install these components to monitor target proximity seamlessly without requiring physical contact with the tracked medium.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width sensor (EF007094): 0 mm
  • Height of sensor (EF007283): 0 mm
  • Length of sensor (EF007334): 80 mm
  • Diameter sensor (EF007111): 30 mm
  • Mechanical mounting condition for sensor (EF004041): Concise
  • Switching distance (EF003647): 20 mm
  • Suitable for safety functions (EF001597): No
  • Type of switch function (EF003963): Normally open contact
  • Type of switching output (EF003962): NPN
  • Type of electric connection (EF003961): Plug-in connection
  • Number of protected semiconductor outputs (EF003951): 0
  • Number of protected contact energized outputs (EF003952): 0
  • Construction type housing (EF004008): Cylinder, screw-thread
  • Cascadable (EF000507): No
  • Max. output current at protected output (EF004035): 0 mA
  • Supply voltage (EF004127): 10 V

More info

▲

General specifications

Product Name
Eaton Moeller® series E53 Proximity switch
Catalog Number
134776
Model Code
E53KAL30T110SD
EAN
4015081316281
Product Length/Depth
101.6 mm
Product Height
25.4 mm
Product Width
88.9 mm
Product Weight
0.23 kg
Certifications
CE
IEC/EN 60947-5-2

Product specifications

Type
Capacitive sensor
Electric connection type
Plug-in connection
Enclosure material finishing
Other
Fitted with:
Status indication
Actuation type
Other
Enclosure material
Plastic
Enclosure type
Cylinder, screw-thread
Category (EN 954-1)
B
Explosion safety category for dust
None
Explosion safety category for gas
None
Functions
Short-circuit protection
Protection against wire breakage
Protection against polarity reversal
Voltage type
DC
Mounting method
Flush mounting
Material
Insulated material
Connection type
Plug-in connection M12 x 1
3-wire
Installation type
Concise
Degree of protection
NEMA 13
NEMA 4
NEMA 12
IP65
Interface type
None
LED indicator
Status indication of Switching state: Red LED
Switch function type
Normally open contact
Load current
Max. 300 mA (Ie)
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at DC - max
30 V
Rated control supply voltage (Us) at DC - min
10 V
Rated switching distance (Sn)
20 mm
Repeatability
10 %
Sensor height
0 mm
Sensor length
80 mm
Supply voltage - max
30 V
Supply voltage - min
10 V
Switching hysteresis of Sn
20 %
Voltage drop (Ud)
2 V
Voltage rating - max
250 V
Width sensor
0 mm
Product category
E53 Capacitive Series
Operational current (Ib)
< 10 mA (in the switched state at 24 V DC)
Residual current
0.1 mA (through the load in the blocked state at 230 V AC and 24 V DC)
Residual ripple
10 % (Uₑ)
Shock resistance
30 g, Mechanical, Shock duration 11 ms
Switching frequency
250 Hz
Switching output type
NPN
Temperature drift of sn
10 %
Safety performance level (EN ISO 13849-1)
None
SIL (IEC 61508)
None
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-25 °C
Diameter sensor
30 mm
Number of contact energized outputs with signalling function
0
Number of contacts (normally open contacts)
1
Number of outputs (protected contact energized)
0
Number of outputs (protected semiconductor)
0
Number of outputs (semiconductor with signaling function)
1
Output current at protected output - max
0 mA
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
