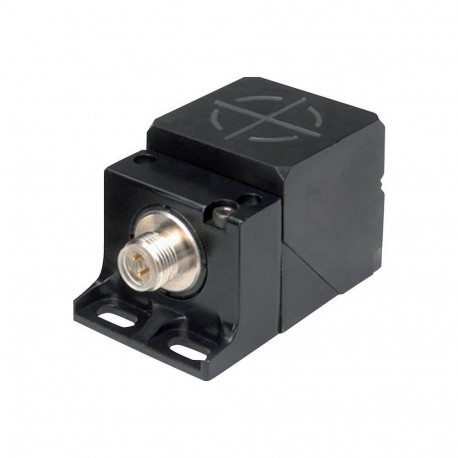

E52Q-DL40UAD01 135811 Y7-135811 EATON ELECTRIC Proximity switch, inductive, 1N/O+1N/C, Sn 40mm, 4L, 10-48VDC..

E52Q-DL40UAD01

135811

Y7-135811

EATON - MOELLER

1 Pcs.

Proximity switch, inductive, 1N/O+1N/C, Sn=40mm, 4L, 10-48VDC, NPN, PNP, quad.40, insulated material E52Q-DL40UAD01 Eaton Moeller® series E52 Proximity switch, inductive, 1N/O+1N/C, Sn=40mm, 4L, 10-48VDC, NPN, PNP, quad.40, insulated material Proximity switch, Inductive Sensors, Product range: E52 Cube Series, Description: Housing adapter, Connection: 4-wire, Design (outer dimensions): 40 x 40 x 40 mm, Rated operational voltage: Ue= 10 – 48 V DC, Rated switching distance: Sn= 40 mm, Type of mounting: Non-flush, Switching type: NPN, PNP, Plug-in connection M12 x 1, Contacts N/C = Normally closed: 1 NC, Contacts N/O = Normally open: 1 N/O, Material: Zinc/Insulated material, Degree of Protection: IP67, Standards: IEC/EN 60947-5-2

Automation > Inductive proximity switch
Sensors

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Eaton Moeller E52Q-DL40UAD01 135811 Y7-135811 EATON ELECTRIC Proximity switch, inductive, 1N/O+1N/C, Sn 40mm, 4L, 10-48VDC.. is a cuboid inductive proximity switch utilized in heavy-duty industrial applications to detect large metal objects at extended distances.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Width sensor (EF007094): 40 mm
  • Height of sensor (EF007283): 40 mm
  • Length of sensor (EF007334): 40 mm
  • Diameter sensor (EF007111): 0 mm
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Switching distance (EF003647): 40 mm
  • Suitable for safety functions (EF001597): No
  • Type of switch function (EF003963): Anticoincidence
  • Type of switching output (EF003962): NPN
  • Type of electric connection (EF003961): Plug-in connection
  • Number of protected semiconductor outputs (EF003951): 0
  • Number of protected contact energized outputs (EF003952): 0
  • Type of actuation (EF006949): Metallic Target
  • Construction type housing (EF004008): Cuboid
  • Cascadable (EF000507): No
  • Max. output current at protected output (EF004035): 0 mA

More info

▲

General specifications

Product Name
Eaton E52 inductive proximity sensor
Catalog Number
135811
Model Code
E52Q-DL40UAD01
EAN
4015081326044
Product Length/Depth
41.28 mm
Product Height
79.38 mm
Product Width
44.45 mm
Product Weight
0.27 kg
Certifications
UL Category Control No.: NRKH, NRKH7
UL File No.: E166051
Certified by UL for use in Canada
IEC/EN 60947-5-2
CE
CSA-C22.2 No. 14
UL
UL 508
CSA File No.: UL report applies to both US and Canada
Catalog Notes
Housing adapter

Product specifications

Type
Inductive sensor
Electric connection type
Plug-in connection
Enclosure material finishing
Other
Surface finishing
Zinc alloy
Actuation type
Metallic Target
Enclosure material
Plastic
Enclosure type
Cuboid
Category (EN 954-1)
B
Explosion safety category for dust
None
Explosion safety category for gas
None
Safety performance level (EN ISO 13849-1)
None
SIL (IEC 61508)
None
Ambient operating temperature - max
70 °C
Ambient operating temperature - min
-40 °C
Diameter sensor
0 mm
Number of contact energized outputs with signalling function
0
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1
Number of outputs (protected contact energized)
0
Number of outputs (protected semiconductor)
0
Number of outputs (semiconductor with signaling function)
1
Operational current (Ib) in the switched state at 24 V DC
25 A
Output current at protected output - max
0 mA
Rated control supply voltage (Us) at AC, 50 Hz - max
0 V
Functions
Protection against polarity reversal
Protection against wire breakage
Short-circuit protection
Voltage type
DC
Mounting method
Non-flush mounting
Material
Zinc (Insulated)
Connection type
Plug-in connection M12 x 1
4-wire
Installation type
Not flat
Degree of protection
IP67
NEMA 4X, 6, 13
Interface type
None
LED indicator
Status indication of Operating voltage: Green LED
Status indication of Switching state: Red LED
Switch function type
Anticoincidence
Load current
Max. 300 mA (Ie)
Residual current
0.15 mA (through the load in the blocked state at 230 V AC and 24 V DC)
Shock resistance
30 g, Mechanical, Shock duration 11 ms
Switching frequency
100 Hz
Voltage rating - max
48 V
Width sensor
40 mm
Product category
E52 Cube Series
Switching output type
NPN
Temperature drift of sn
10 %
Rated control supply voltage (Us) at AC, 50 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at DC - max
48 V
Rated control supply voltage (Us) at DC - min
6 V
Rated switching distance (Sn) - max
40 mm
Repeatability
2 %
Sensor height
40 mm
Sensor length
40 mm
Supply voltage - max
48 V
Supply voltage - min
6 V
Switching hysteresis of Sn
15 %
Voltage drop (Ud)
2.5 V
